  • Double Head Cutting Machine For Multiple Window Profiles

Double Head Cutting Machine For Multiple Window Profiles

  • Product Item : LJZ2C-CNC-550*4200
  • Brand:OKNA
  • Color : green/white
  • Conutry Of Orign:China
  • Application: Designed for aluminum profiles cutting
  • Product description:Double Head Cutting Machine For multiple aluminum Profiles, designed for cutting multiple aluminum and uPVC profiles in one time. Aluminum profile double head cutting machine, is the primary equipment
  • Inquiry

Double Head Cutting Machine For Multiple Windows Profile

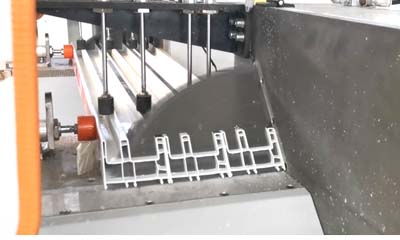

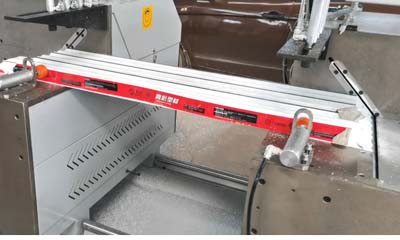

Machine Details

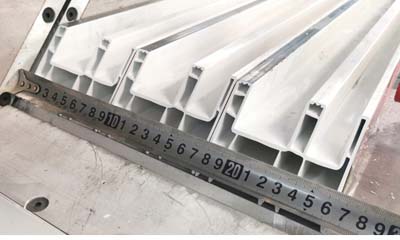

cutting saw right head cutting saw details cutting multiple profiles pvc profile cutting


Product description

1. Double Head Cutting Machine For Multiple Profile is specially designed for cutting multiple aluminum and uPVC door and window profiles in one time, and Improve window production efficiency.
2. The feeding system of the double head cutting machine adopts high-quality linear guide rail, with high precision and good stability. The saw blade adopts high-precision spindle with stable rotation.
3. It can be cut 45° only.
4. Pneumatic and hydraulic feed system ensures accurate and stable feed.
5. Carbide saw blade processing precision, high durability.
6. The two heads of this double head miter saw can be used together or separately to efficiently cut the required length and Angle.

7. Power supply protects system from voltage overload.

8. Linear rails head movement.


Technical Specifications


Power supply
380V/50Hz
Total power output
6.0Kw
Working air pressure 0.5~0.8MPa
Air consumption
300L/min
Diameter of blade
550mm
Spindle speed
3200r/min
Feeding speed
0~3m/min
Cutting length
400~4200mm
Cutting angle
45°
Dimensions:(Width×Depth×Height)
5300×1350×1750mm
Machine weight
1950Kg
