Aluminum Profile Double Head Miter Saw

  • Product Item : SSJ06-450×3700
  • Brand: DFAN
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for aluminum profiles cutting
  • Product description:Aluminum Profile Double Head Mitre Saw, designed for cutting PVC and aluminium profiles, good price and high cutting precision, Door making machinery from China, aluminium window cutting saw machinery
  • Inquiry

Aluminum Profile Double Head Mitre Saw

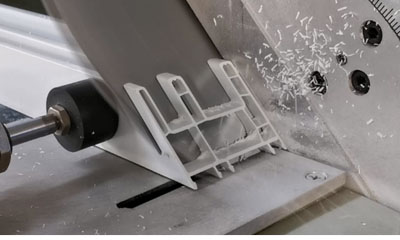

alminum cutting saw Rotating structure double head cutting machine feeding system 90 degre cutting 45 degree cutting


Product description

1. The aluminum profile double head mitre saw SSJ06-3700 is mainly used for cutting 90 degree and inside 45degree plastic and aluminium profiles. Various angle cutting is available, is the ideal aluminum window manufacturing equipment.
2. Right head of the cutting machine moving is driven by motor automatically and easily. Auto brake device.
3. Micro cutting length adjustment device ensures precision and easy operation.
4. With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.
5. The linear guiding pair ensures steady processing accuracy.
6. Saw blade rotates smoothly due to high accuracy main spindle.
7. Saw blade straight feeding from inside to outside stably and precisely by the pneumatic cylinder. Optional Hydro-pneumatic feeding cylinder is available.
8. Carbide Saw blade ensures high cutting surface precision.
9. Two hand safety operations.



Technical specifications

Power supply
380V/50Hz
Input power
2*1.5Kw
Motor rotary speed
2800r/min
Dimensions:(Width×Depth×Height)
4500×1200×1500mm
Weight when empty
1000Kg
Air pressure
0.5~0.7MPa
Air consumption
200L/min
Saw blade diameter
∮450mm×30mm
Cutting height 200mm
Cutting width 120mm
Cutting angle
45°、90°
Cutting profile surface plane
≤0.15mm
Cutting profile surface roughness

Ra12.5mm

*All specifications, dimensions, colors, and design characteristics are shown in this aluminum profile double head mitre saw  are subject to change without notice.
