  •  CNC Double Head Cutting Machine For Aluminium Profile
  •  CNC Double Head Cutting Machine For Aluminium Profile
 CNC Double Head Cutting Machine For Aluminium Profile  CNC Double Head Cutting Machine For Aluminium Profile

CNC Double Head Cutting Machine For Aluminium Profile

  • Product Item : SSJ06A-CNC-450×3700
  • Brand:DFAN
  • Color:white/gray
  • Country of Origin: China
  • Application: Designed for aluminum profiles cutting
  • Product description:CNC Double Head Cutting Machine For Aluminum Profiles, Aluminum CNC machine double head cutting saw is used for cutting aluminium profiles, aluminium profile cnc machine, aluminum profile 2-head sawin
  • Inquiry

CNC Double Head Cutting Machine For Aluminium Profiles Aluminium Profile CNC Machine Manufacturers

aluminum profile CNC machine double head cutting saw system CNC double head cutting machine head details CNC double meter saw motor aluminum CNC machine double head cutting machine cutting process

Product description

1. This aluminum profile CNC machine double head cutting machine SSJ06A is mainly used for cutting uPVC and aluminum window profiles. CNC control systems, Reasonable design structure, and high-quality components ensure the high quality and high efficiency of cutting Windows and doors profile, is the ideal aluminum cutting machinery for making doors and Windows. This double head sawing machine allows you to make uPVC & aluminum Windows and doors easily and efficiently.

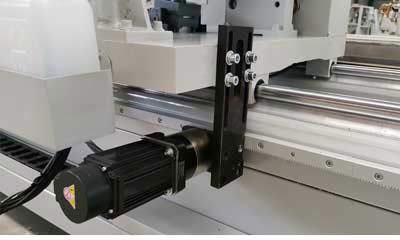

2. The aluminum CNC sawing machine feeding system adopts linear guide pair, with high accuracy and stability.

3. Adopts CNC control system, automatic positioning of cutting size and angle, easy operation and precise cutting.

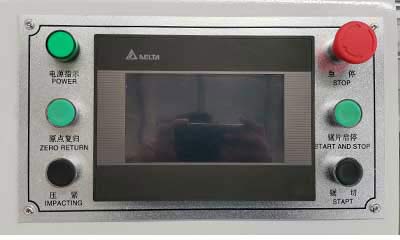

4. Cutting length size and angle degree are entered from LCD-display on the control pane.

5. Automatic head position for 45° and 90 °degrees, easy adjustment for intermediate angles.


6. Saw blade rotates smoothly due to high accuracy spindle.

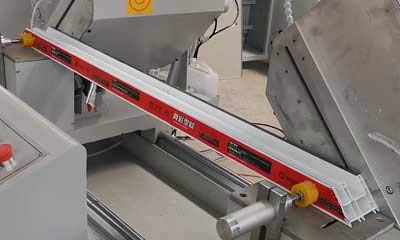

7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.

8. Two heads can work together or single, when together work, this CNC aluminum machine can cut off the required length and angle profile in one time.

Technical specifications

Input power
380V/50Hz
Total power
2×1.5Kw
Spindle speed
2800r/min
Working air pressure
0.5~0.7MPa
Diameter of blade
450mm
Dimensions:(Width×Depth×Height)
5100×1300×1900mm
Machine weight
850Kg
Feeding speed 0~3m/min
Cutting length 420~3700mm
Cutting angle 45°,90°
Cutting height
45°max×200mm,90°max×300mm

*All specifications, dimensions, colors, and design characteristics are shown in this CNC aluminum double-head cutting machine SSJ06A are subject to change without notice.

Configuration recommendations

The left side of the CNC double-head cutting saw can be equipped with a CNC size positioning system
1.The CNC ruter system adopt double linear guide rail, fast and accurate positioning, can input multiple sets of cutting size at the same time.
2 When the CNC measurement system is selected, the CNC double-head saw can cut two pieces of different length materials at the same time when cutting 90-degree, and the cutting efficiency is doubled. For example, when cutting aluminum alloy bead, you can cut two different lengths in one operation.
.



CNC Positioning ruler system for double head cutting machine
