uPVC Window Single Head Copy Router

  • Product Item : LXSZ1B-125
  • Color : gray/white
  • Brand: OKNA
  • Origin: China
  • Application: Designed for copy milling of aluminium and PVC profiles
  • Product description:uPVC Window Single Head Copy Router, pvc single head copy routing machine suppliers designed for copy milling of aluminium and PVC profiles, single head copy router price, pvc window water slot hole d
  • Inquiry

uPVC Single Head Copy Router Machine water hole drilling machine

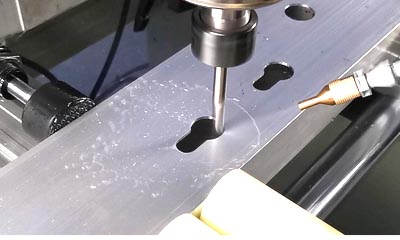

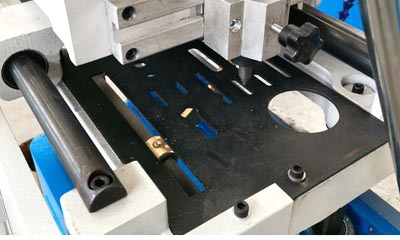

single head cory ruter hole template lock hole milling process lock hole milling single head copy ruter hole milling effect

Product description

1. This PVC single head copy router machine is used for milling and drilling lock holes, water slots, and keyholes or wiring grooves of various holes of PVC and Aluminum window profiles.

2. The copy router equipped with a 1:1 ratio standard profiling template, which can quickly mill various keyholes, water holes and other shapes of hole grooves, and can also customize professional templates for special window making shaped holes.

3. When milling rectangular holes on the window profiles, you can use the four positioning blocks of the router machinery to set the size quickly.

4. The window profile is clamped pneumatically and controlled by a foot valve.

5. Standard equipped with a hole template. also can make customer-specified templates.

6. Movement on recirculating ball bearings, ensure great stability and precision to the head unit, making it possible to work on every kind of aluminium and PVC profiles.

7. When milling aluminum alloy profiles with this single head copy router, it is necessary to spray the milling cutter with cooling system.

Technical specifications

Power supply
380V/50Hz or customer specification
Input power
2.2Kw
Dimensions:(Width×Depth×Height)
870×700×1500mm
Weight when empty
230Kg
Air pressure
0.5~0.8MPa
Air consumption
10L/min
Cutter Diameter ∮5mm    ∮8mm
Copy milling range
370×125mm
Main-Shaft Revolution
12000r/mm

*All specifications, dimensions, colors, and design characteristics are shown in this single head PVC copy router machine are subject to change without notice.
