  • Double Head Copy Routing Machine for Aluminium Profile

Double Head Copy Routing Machine for Aluminium Profile

  • Product Item : LSXZ2-125
  • Brand: OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for aluminum profiles hole milling
  • Product description:Double Head Copy Routing Machine for Aluminium Profile, aluminum double head copy router, used for routing hardware hole and water slot or various hole of aluminium profiles, aluminum double head copy
  • Inquiry

Aluminium Double Head Copy Routing Machine Hardware Hole Milling Machine

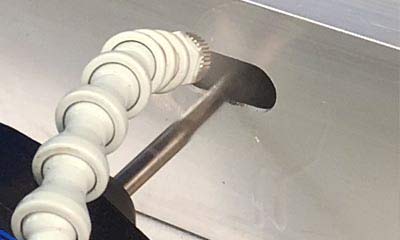

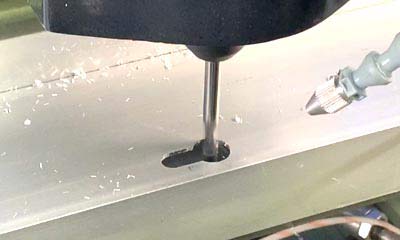

double head copy router machine milling process double head cory router hole milling process hardware hole milling with aluminum copy ruter double head aluminum copy router templat

Product description

1. This aluminum double head copy routing machine is used to milling various types of holes in aluminum profiles, such as keyholes, sinkholes, hardware holes, etc. The profile clamping adopts pneumatic transmission. It can be processed continuously in the vertical and horizontal directions, and the operation is simple. It is the necessary aluminum milling machine for processing aluminum doors and windows.

2. This aluminum double-head copy router is driven by two motors to rotate the milling cutter in the vertical and horizontal directions, which can realize continuous processing in the vertical and horizontal directions.

3. There are two levels of profiling contact rods in the vertical and horizontal directions, the diameter is the same as that of the milling cutter, and the hole can be processed at a ratio of 1:1.

4. Using vertical and horizontal clamping profile, stable, and reliable.

5. The copy router is equipped with a spray cooling device to ensure the smoothness of milling and prolong the service life of milling cutters.

6. The cutting depth in the vertical and horizontal directions can be positioned and adjusted.

7. The profiling contact rod has two standards of 5mm and 8mm, which are selected according to the diameter of the milling cutter.

8. The copy router machine template can be customized according to actual requirements.

9. This 2-head copy router can also be used as a PVC window processing machine, used to milling various holes of PVC profile, the spray device does not need to be used.


Technical specifications

Power supply
380V/50Hz or customer specification
Input power
2×0.75Kw
Dimensions:(Width×Depth×Height)
850×750×1500mm
Weight when empty
250Kg
Air pressure
0.5~0.8MPa
Air consumption
30L/min
Cutter Diameter ∮5mm    ∮8mm
Copy milling range
290×90mm
Main-Shaft Revolution

12000r/mm

*All specifications, dimensions, colors, and design characteristics are shown in this aluminum double head copy router are subject to change without notice.
