Aluminum Window Lock Hole Drilling Machine

  • Product Item : SSKC02-100
  • Brand: DFAN
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for copy milling and triple drilling of aluminium and PVC profiles
  • Product description:Aluminum Window Lock Hole Drilling Machine, drill machine for door lock hole and water slots designed for copy routing and triple drilling of aluminium and PVC profiles, aluminum door lock hole drilli
  • Inquiry

Aluminum Window Door Lock Hole Drilling Machine | Aluminum Drill Machine For Locks and Water Slots with Triple Drilling

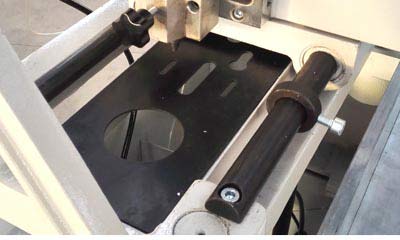

lock hole drilling machine three drills lock hole drilling machine plan templat lock hole drilling machine drill motor lock hole drilling machine details

Product description

1. This aluminum door lock hole drilling machine with Triple Drilling is used for processing water slots and Handle holes for installing the window hardware at the PVC and Aluminum profile.
2. The lock hole drill system opposite the operator, easy operation.
The machining of three holes is driven by a motor through a gear box to rotate three drills.
3. Routing to stops or universal template in a 1:1 ratio.
The profiling milling part is processed by a milling cutter driven by a motor through a belt drive under the guidance of a two-stage profiling contact rod. The diameter of the contact rod is the same as the diameter of the milling cutter. The milled hole pattern is the same as the hole pattern of the profiled plate.
4. Handle wheel for easy adjusting milling height. Friendly using design.
5. Horizontal Triple drill bit kit and vertical copy router with a special cutout working table to realize.
6. Equipped with a standard hole template. The plan template is standard equipped or specifically designed.

Technical specifications

Power supply
380V/50Hz or customer specification
Input power
2.25Kw
Dimensions:(Width×Depth×Height)
1000×1130×1500mm
Weight when empty
300Kg
Air pressure
0.5~0.8MPa
Air consumption
30L/min
Cutter Diameter ∮5mm    ∮8mm
Copy milling range
90×290mm
Solt Depth(max)
30mm

*All specifications, dimensions, colors, and design characteristics are shown in this aluminum door lock hole drilling machine are subject to change without notice.
