  • uPVC Window Two Head Seamless Welding Machine
  • uPVC Window Two Head Seamless Welding Machine
  • uPVC Window Two Head Seamless Welding Machine
uPVC Window Two Head Seamless Welding MachineuPVC Window Two Head Seamless Welding MachineuPVC Window Two Head Seamless Welding Machine

uPVC Window Two Head Seamless Welding Machine

  • Product Item : HJ05-2×3500
  • Brand: OKNA
  • Color: gray/white
  • Country of Origin: China
  • Application: Designed for PVC window corner welding
  • Product description:Double Head PVC Seamless Welding Machine, PVC window 2-head seamless welding machine designed for welding UPVC Colorful profiles, double head pvc seamless welder for sale, China PVC window double head
  • Attachment Inquiry

uPVC Window and Door Double-Head Seamless Welding Machine PVC window two-head seamless welder


double head seamless welding machine head double-head seamless welding maching technology double head welding machime right head

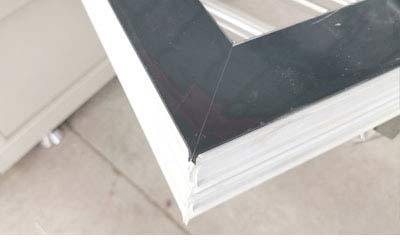

colorful pvc window welding process colorful pvc window corner pvc window corner effect photo

Product description

1. This uPVC Window automatic Double-Head Seamless Welding Machine is mainly used for welding UPVC doors and Windows colorful and common profiles, which is an important window welding equipment for making colorful uPVC windows and doors.
2. Seamless switching of any color can be completed freely without the adjustment board.
3. The machine is controlled by PLC, driven by air, and the auxiliary motion is CM oil-free bearing and linear ball bearing.
4. There is no need for corner cleaning after the completion of the pvc window welding, and the size of the welding gap can be strictly controlled, the surface of the welding seam after welding is very beautiful and smooth.
5. The cutting tool of the machine is made of alloy tool, realize the standardization, support tool exchange.

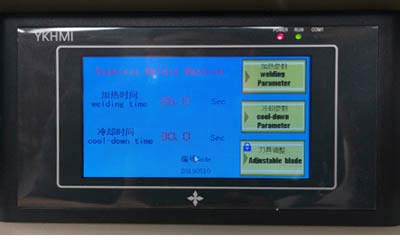

6. The parameters of this two head seamless welding machine such as heating time, joining time, welding temperature, joining pressure and clamping pressure, etc. can be individually adjusted according to different Chemical properties of the window profiles.

7. Automatic welding head positioning, knife limitation, and the electronically controlled temperature of the heater plates guarantee the highest precision and corner strength.

8. Various pvc window colorful corner shapes such as ┓┳┏┓┏┳ , can be welded in one operation with this pvc welding machine.

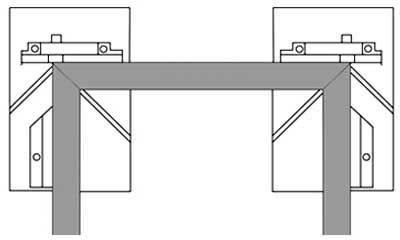

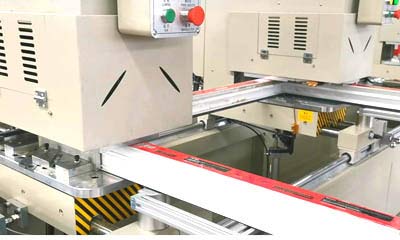

two head seamless welding machine left head two head seamless welding machine right head two head seamless welding machine mullion welding
two head seamless welding machine two corner welding two head seamless welding machine mullion welding process

how to make colorful pvc window with seamless welding machine? Please watch the upvc window seamless welding process video below

Technical specifications

Power supply
220V/50Hz or customer specification
Input power
3.5Kw
Dimensions:(Width×Depth×Height)
4300×1150×1900mm
Weight when empty
1000Kg
Air pressure
0.5~0.8MPa
Air consumption
150L/min
Welding width(max) 120mm
Welding height
20~120mm
Welding range
400~3500mm


*All specifications, dimensions, and design characteristics are shown in this PVC double head seamless welding machine are subject to change without notice.
