Aluminum Single Head Corner Crimping Machine

  • Product Item : LZJ03-160
  • Brand:OKNA
  • Color : green/white
  • Country Of Origin: China
  • Application: joining the corners of two aluminium profiles
  • Product description:Aluminum Hydraulic Single Head Corner Crimping Machine, aluminium window corner crimping machine price, aluminum corner crimper for sale, suitable for crimping large-end aluminum windows, China alumi
  • Inquiry

Aluminium Profile Corner Crimping Machine Aluminum Window Corner Crimper for Sale

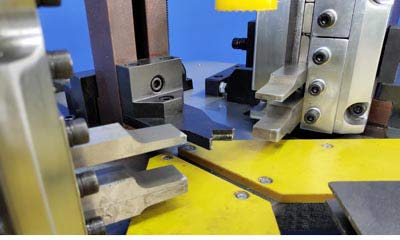

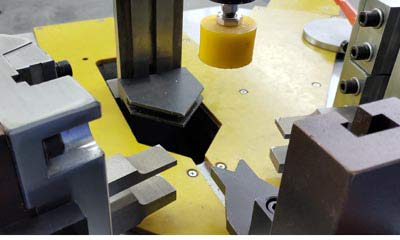

aluminum single head corner crimping machine positioning aluminum corner crimping machine details aluminum corner crimping process aluminum window corner crimping imege

Product description

1.This aluminum Hydraulic Corner crimping machine adopts a reinforced profile bracket and mechanical structure, which makes the corner crimping more stable and has a low failure rate. Suitable for making large-end aluminum windows.

2.The automatic lifting type internal positioning mechanism is adopted to make the profile clamping more convenient.

3.Using a dedicated drive cylinder, the punching and riveting are larger at the same pressure, and it can process large sections and thick wall aluminum profiles.

4.The special hydraulic system can provide faster assembly angular velocity and high production efficiency.

5.The corner cutter holder of the corner crimper can reach 160mm, which is suitable for large-end aluminum window profiles.

6.The automatic control system is adopted, which is convenient to adjust, and the aluminum alloy window corner crimping is more simple and efficient.

This  aluminum Window single head frame crimping machine is an important aluminum window corner crimping machine for you to make aluminium Windows.


Technical specifications

Power supply:
380V/50Hz
Power output
2.2Kw
Rating oil pressure
20MPa
Total combining pressure
0.5~0.8MPa
Dimensions:(Width×Depth×Height)
1200×1180×1200mm
Weight when empty
450Kg
Capability of oil box
30L
Max height of profile
160mm
Max width of profile
100mm
Cylinder movenent stroke
0~100mm
Corner combining casing movement journey
85mm
