Aluminium Window Corner Crimping Machine Frame Making Machine

  • Product Item : LZJ03-120
  • Brand: OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application: Joining the corners of two aluminium profiles
  • Product description:Aluminum Window Corner Crimping Machine Aluminum Frame Making Machine, aluminium window corner crimper is used for joining the corners of two aluminium profiles, corner crimping machine for aluminium
  • Inquiry

Aluminium Window Single Corner Crimping Machine Corner Crimper for Aluminium Windows

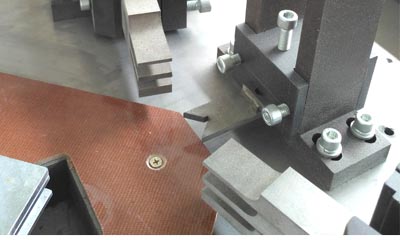

aluminum corner crimping machine positioning aluminum window corner crimping cutter details aluminum corner crimping machine price aluminum corner crimping corner photo

Product description

1. This aluminium window single corner crimping machine is used for Joining the corners of two aluminium profiles with a wedge placed inside by applying pressure, It is a necessary aluminum window manufacturing equipment for your factory to make aluminum windows and doors.

2. This aluminum corner crimping machine for aluminium windows adopts electric and hydraulic combined control, adopts low-pressure feeding, high-pressure crimping corner mode to realize the synchronous operation of the left and right group corners, and the corner is accurate. When the aluminum corner crimping machine running, the positioning systems adopt the up-down adjustment and the front-back adjustment method, which is suitable for aluminum profiles with different cross-sections and sizes.
3. The aluminum corner crimper machine features high power, wide scope and suitable for corner combination of the common profiles and heat insulation bridge-cut aluminum alloy profile.
4. Multiple combination localization systems to ensure the accuracy of aluminum window corner crimping.
5. The link gear mechanism ensures the corner combining cutter of two sides working completely synchronized.
6. Adopt a new mechanical linkage device, realized complete synchronous corner combining.

7. Easy machine setting due to the synchronous feeding device.
This  aluminium Window frame fabrication machine is an important aluminum window making machine for you to manufacturing aluminium Windows.

Technical specifications

Power supply:
380V/50Hz
Power output
1.5Kw
Rating oil pressure
15MPa
Total combining pressure
0.5~0.8MPa
Dimensions:(Width×Depth×Height)
1100×1180×1210mm
Weight when empty
350Kg
Capability of oil box
30L
Max profile processing height
100mm
Max profile processing width
90mm
Cylinder movenent stroke
0~85mm

*All specifications, dimensions, colors, and design characteristics are shown in this single head aluminium window corner crimping machine are subject to change without notice.
