UPVC Window and door Double Head Miter Saw

  • Product Item : SSJ06-450×3700
  • Brand: DFAN
  • Color: gray/white
  • Country of Origin China
  • Application: Designed for PVC and aluminium profiles cutting
  • Product description:UPVC Profile Double Head Mitre Saw, PVC window double head sawing machine designed for cutting UPVC and aluminum window profiles, China double head mitre saw machine supplier, is mainly important PVC
  • Inquiry

Double Head Mitre Saw For Processing PVC Window Double Head PVC Sawing Machine

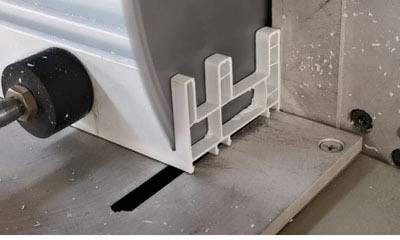

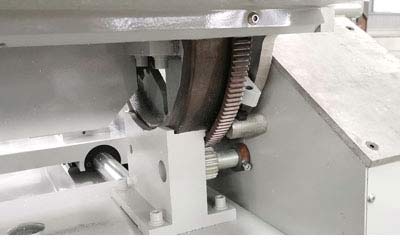

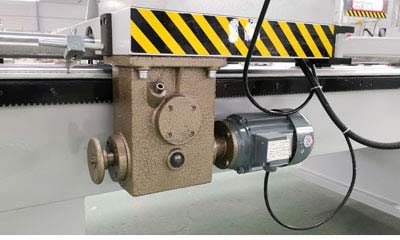

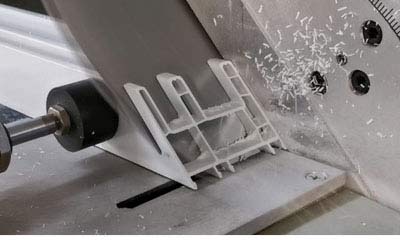

double head meter saw feeding system double head meter saw Rotating structure double head meter saw 45 degree cutting pvc cutting saw 90 degree cutting process


Product description

1. This uPVC profile double head mitre saw is mainly used for cutting 90 degree and inside 45 degree UPVC and aluminium profiles. Other angles can also be cut.

2. The right moving head of the double mitre saw is automatically and easily driven by a gear motor. Automatic braking device.

3. Micro-cut length adjustment handwheel device to ensure accuracy and easy operation.

4. The additional equal length intermediate support mechanism is convenient for feeding and positioning.

5. The right machine head moves on two linear guides to ensure stable moving speed and cutting accuracy.

6. The spindle has high precision and the saw blade rotates smoothly.

7. The double mitre saw blade is stabilized by the air cylinder and moves straight from the inside to the outside accurately. Optional hydropneumatic.
8. Two hand safety operations for this pvc
window manufacturing machinery.

9. If you need to add a cutting size digital display system and protective cover, please refer to the SSJ06B-DDS-450×3700 model double head window profile cutting machine.

Technical specifications


Power supply
380V/50Hz
Input power
2*1.5Kw
Motor rotary speed
2800r/min
Dimensions:(Width×Depth×Height)
4500×1200×1560mm
Weight when empty
1000Kg
Air pressure
0.5~0.8MPa
Air consumption
80L/min
Saw blade diameter
∮450mm×30mm
Cutting height 200mm
Cutting width 120mm
Cutting angle
45°、90°
Cutting profile surface plane
≤0.15mm
Cutting profile surface roughness
Ra12.5mm

*All specifications, dimensions, and design characteristics are shown in this PVC double head mitre saw machine are subject to change without notice.
