  • Double-head Cutting Saw with Digital-display System PVC Window Making Machine
  • Double-head Cutting Saw with Digital-display System PVC Window Making Machine
Double-head Cutting Saw with Digital-display System PVC Window Making MachineDouble-head Cutting Saw with Digital-display System PVC Window Making Machine

Double-head Cutting Saw with Digital-display System PVC Window Making Machine

  • Product Item : SSJ06B-DDS-450×3700
  • Brand:OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for PVC and aluminium profiles cutting
  • Product description:Double-head PVC Cutting Saw machine with Digital-display System PVC Window Making Machine pvc double head cutting-off machine designed for cutting UPVC window profiles, China PVC double head cutting m
  • Inquiry

Double-head PVC Profile Cutting Saw with Digital-display System PVC Window Manufacturing Machines

double head meter saw Digital-display System double head pvc meter saw details double head mitre saw motor feeding system pvc double head cutting saw price


Product description

1. This double head digital display cutting machine for PVC and aluminum window profiles is mainly used for cutting uPVC and aluminum window profiles with 90 degree and 45 degree. It is a high-quality cutting machine for cutting profiles in the process of making PVC windows and aluminum windows.

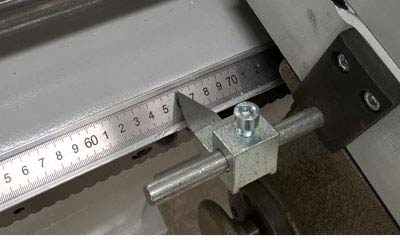

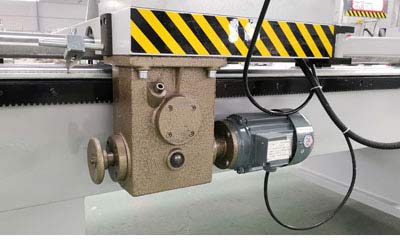

2. The right moving head of the DDS double head cutting saw is automatically and easily driven by the reducer gear and motor. The micro-cut length adjustment handwheel device ensures accuracy and ease of operation.

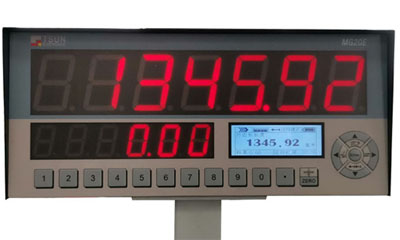

3. The sawing machine is equipped with a cutting size digital display system, cutting size is more accurate.

4. Compared with the double head cutting saw machine of the SSJ06-450×3700 model, the lifting protective cover and the fixed supporting frame of the right cutting machine head are added, which makes the operator safer.

5. The right machine head moves on the two linear guides to ensure stable moving speed and cutting accuracy.

6. The spindle has high precision and the saw blade rotates smoothly.

7. The saw blade is driven by a gas-liquid damping cylinder, and the processing speed can be adjusted smoothly.

Technical specifications


Power supply
380V/50Hz
Input power
2*1.5Kw
Motor rotary speed
2800r/min
Dimensions:(Width×Depth×Height)
4500×1200×1760mm
Weight when empty
1050Kg
Air pressure
0.5~0.8MPa
Air consumption
80L/min
Saw blade diameter
∮450mm×30mm
Cutting height 200mm
Cutting width 120mm
Cutting angle
45°、90°
Cutting profile surface plane
≤0.15mm
Cutting profile surface roughness
Ra12.5mm

*All specifications, dimensions, and design characteristics are shown in this double head PVC cutting saw machine are subject to change without notice.
