  • Single Corner Various Angle Welding Machine For PVC Profile
  • Single Corner Various Angle Welding Machine For PVC Profile
Single Corner Various Angle Welding Machine For PVC ProfileSingle Corner Various Angle Welding Machine For PVC Profile

Single Corner Various Angle Welding Machine For PVC Profile

  • Product Item : SHRJ01-120
  • Brand: OKNA
  • Color: gray/white
  • Country of Origin: China
  • Application: Used for welding PVC profiles at various angles.
  • Product description:Single corner various angle welding machine for PVC profile, single head PVC various angle welding machine used for welding between 30° and 180° corner of PVC profile, PVC window various angle corner
  • Inquiry

Single Corner PVC Various Angle Welding Machine For uPVC Window and Door

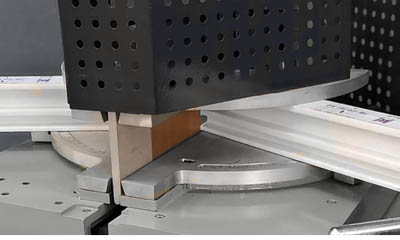

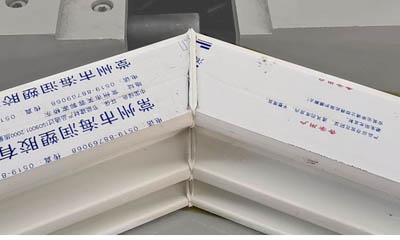

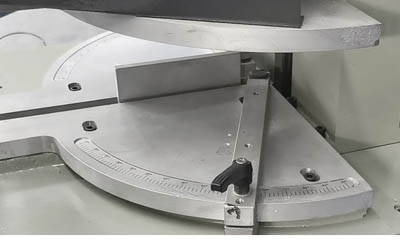

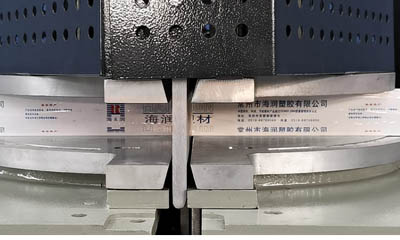

single corner pvc welding machine head single corner welding machine corner welding process single corner pvc welder details pvc window various angle corner welding

Product description

    1. This Single corner various angle welding machine is mainly used for welding between 30° and 180° corner of the PVC profile, and it is a special PVC window manufacturing equipment for making PVC special-shaped windows.

    2. Adopt PLC control to ensure the reliability and stability of this single corner welding machine operation, automatic corner welding process starting and finishing.

    3. The left and right pressure can be adjusted independently to effectively ensure the flatness of the PVC welding corner.

    4. Using a large welding plate, the maximum weldable size is 330mm.

    5. Welding time adjustment and digitally controlled heating.

    6. This single corner PVC welding machine temperature adjustment between 0 °C and 300 °C with electronic thermostat.


    Technical specifications

Power supply
220V/50Hz or customer specification
Input power
1.2Kw
Dimensions:(Width×Depth×Height)
960×900×1460mm
Weight when empty
260Kg
Air pressure
0.5~0.8MPa
Air consumption
50L/min
Welding width(max) 0~160mm
Welding height
20~120mm

*All specifications, dimensions, colors, and design characteristics are shown in this single corner pvc various angle welding machine are subject to change without notice.
