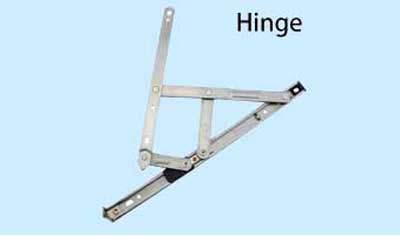

1. This aluminum hinge hole drilling machine is used for drilling the hinge mounting holes of aluminum window hardware. It is an efficient aluminum window making machine for the mass production of aluminum windows.

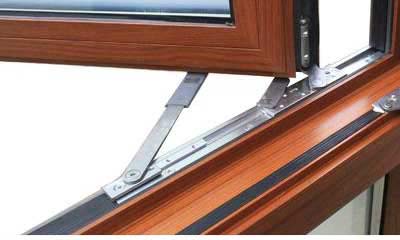

2. Once the aluminum window frame is clamped, it can complete the drilling of all the hinge holes, such as the aluminum outer opening window sash and the lower hanging window sash, with high processing speed and high accuracy.

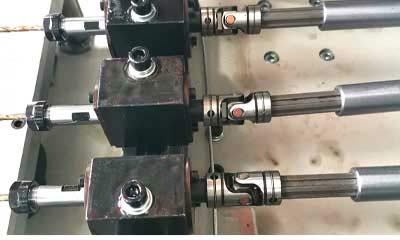

3. This aluminum drills using the linear guide, the right aluminum hole drilling machine head can move left and right according to the size of the window sash.

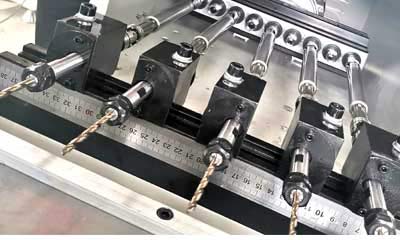

4. Hinge hole drilling space can be adjusted according to the hole size of the hinge. Up to 5 holes can be drilled on one side of the aluminum window sash.
Power supply |
380V/50Hz or customer specification |
Input power |
3.0Kw |
Dimensions:(Width×Depth×Height) |
4000×800×1500mm |
Weight when empty |
650Kg |
Air pressure |
0.5~0.8MPa |
Air consumption |
20L/min |
Drilling aperture |
∮3~5mm |
Max profile dimension |
250×260mm |
Drill up and down movement distance |
50mm |
Adjacent two holes minimun distance |
23mm |
Spindle drilling feed distance |
60mm |
Main-Shaft Revolution |
1400r/mm
|
*All specifications, dimensions, colors, and design characteristics are shown in this honge hole drilling machine are subject to change without notice.
