End Milling Machine For Aluminum Profiles

  • Product Item : DX02-2000
  • Brand: OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application: Milling the end tips of the profiles
  • Product description:End Milling Machine For Aluminium Profiles, aluminum profile end face milling machine designed for millingthe end tips of the profiles that will be joined with the sides of other profiles, aluminum Do
  • Inquiry

Automatic End Milling Machine for Aluminum Profiles End Mill For Mullion

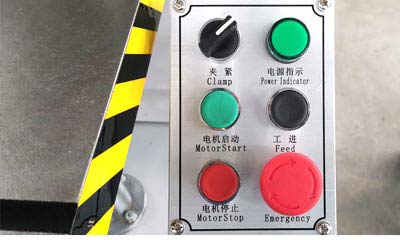

end face milling machine details aluminum end milling machine milling cutter end milling machine for aluminum details

Product description

1. This Aluminium Profile End Milling Machine is used for milling the end tips of the profiles that will be joined with the sides of other profiles to form a multiple segmented window frame.
2. Milling the end of the surface and process the stepped joint.
3. This milling machine can process different structures with stair surface, rectangular slot and tenon and so on.
4. The height of the end milling machine worktable is adjustable.
5. The milling cutter of this aluminum end milling machine needs to be customized according to your aluminum profiles.
6. Pneumatic in feeding smoothly, the milling speed linearity adjustable.

7.Can mill any angle between 35 degrees and 90 degrees of the aluminum profiles.
Technical specifications

Power supply
380V/50Hz or customer specification
Input power
1.5Kw
Dimensions:(Width×Depth×Height)
850×750×1300mm
Weight when empty
200Kg
Air pressure
0.5~0.8MPa
Air consumption
10L/min
Main-shaft Revolution
2800r/mm
Max Processing Height
100mm

Diameter of milling cutter

∮115~∮200mm

*All specifications, dimensions, colors, and design characteristics are shown in this aluminum end milling machine are subject to change without notice.
