  •  Double Head Cutting Machine For UPVC Profile
  •  Double Head Cutting Machine For UPVC Profile
 Double Head Cutting Machine For UPVC Profile Double Head Cutting Machine For UPVC Profile

Double Head Cutting Machine For UPVC Profile

  • Product Item : SSJ06A-450×3700
  • Brand: OKNA
  • Color: gray/white
  • Country Of Origin: China
  • Application: Designed for PVC and aluminium profiles cutting
  • Product description:UPVC window Double Head Cutting Machine, double head pvc cutting machine designed for cutting UPVC and aluminium profiles, Good Price and high cutting precision, China two head uPVC profile cutting ma
  • Inquiry

PVC Double Head Cutting Machine For PVC Profile From China

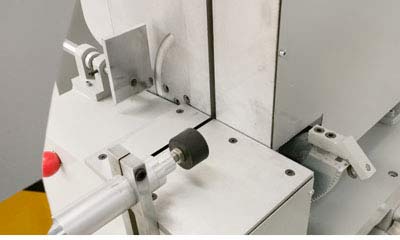

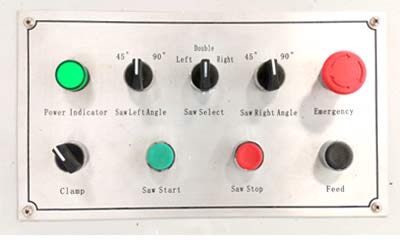

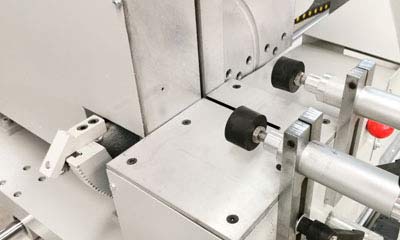

double head cutting saw Operation panel double head cutting saw details double head cutting machine worktable double head cutting right head

Product description
1. This double head PVC cutting-off machine is specially designed for cutting aluminum and uPVC window and door profiles. is the primary pvc window cutting machine for making doors and Windows from China supplier.
2. The PVC cutting machinery feeding system adopts a high-quality linear guide rail, with high precision and good stability. The saw blade adopts high-precision spindle with stable rotation.
3. This cutting machine can cut 45 degree and 90 degree according to different requirements of pvc windows.
4. Pneumatic and hydraulic feed system ensures accurate and stable feed.
5. Carbide saw blade processing precision, high durability.
6. The two heads of the cutting machine can work together or separately to efficiently cut the required length and Angle.

7. Power supply protects system from voltage overload.

8. Linear rails head movement.

Technical specifications

Input power
380V/50Hz
Total power
2×2.2Kw
Spindle speed
2800r/min
Working air pressure
0.5~0.7MPa
Diameter of blade
450mm
Dimensions:(Width×Depth×Height)
5100×1300×1900mm
Machine weight
850Kg
Feeding speed 0~3m/min
Cutting length 420~4200mm
Cutting angle 45°,90°
Cutting height
45°max×200mm,90°max×300mm
