CNC Positioning Single Head Cutting Saw

  • Product Item : SJ03-CNC-350
  • Color: gray/white
  • Brand: DFAN
  • Country of Origin: China
  • Application: Designed for PVC and aluminium profiles cutting
  • Product description:CNC Positioning Single Head Cutting Saw, PVC profile single head cutting machine designed for cutting UPVC and aluminium material, Good Price, High cutting precision, China single head cutting saw fo
  • Inquiry

uPVC Window Profile Single Head Cutting Saw

single head cutting saw machine from China

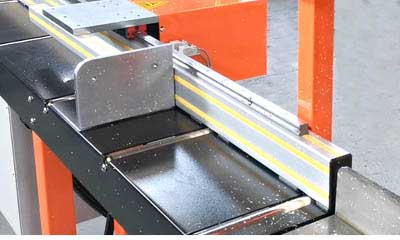

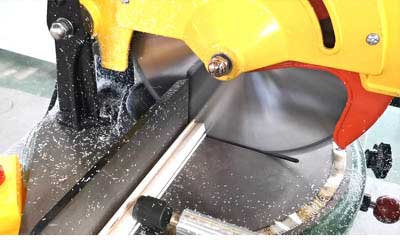

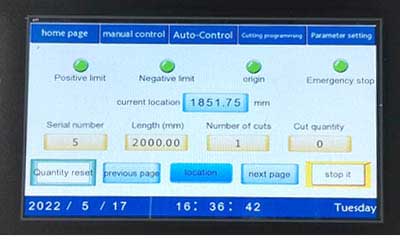

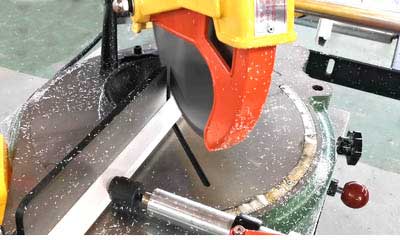

single head saw left head single head cutting saw right head CNC control positioning system details

Product description

1. This PVC single-head cutting saw is specially designed for cutting 45°~90°PVC and aluminum profiles. It can also cut any angle. It is necessary equipment for making pvc & aluminum doors and windows, sliding doors, and home decoration.

2. This upvc cutting machine can be operated pneumatically or manually.

3. The saw head adopts turntable rotation positioning technology, which makes the cutting angle adjustment convenient and quick.

4. Pneumatic clamping in the vertical and horizontal directions at the same time to ensure that the profile is stable during cutting.

5. The left side of the single head cutting saw adopts a CNC control positioning system, the cutting size positioning is fast and accurate, and multiple sets of cutting data can be input at the same time, and the right side is equipped with a file supporting frame.

6. The saw head carries on the fixed axis cycloidal feed on the vertical side of the worktable, and the cutting operation is stable and reliable.


Technical specifications

Power supply
380V/50Hz
Power output
1.1Kw
Motor rotary speed
3200r/min
Dimensions:(Width×Depth×Height)
6800×650×1450mm
Weight when empty
350Kg
Air pressure
0.5~0.8MPa
Air consumption
50L/min
Saw blade diameter
∮350mm×30mm
Cutting height 200mm
Cutting width 100mm
Cutting length
400~3500mm

*All specifications, dimensions, and design characteristics are shown in this CNC positioning single head cutting saw are subject to change without notice.
