CNC Double Head Cutting Machine For UPVC Profile

  • Product Item : SSJ06A-CNC-450×3700
  • Brand: DFAN
  • Country of Origin: China
  • Color: white/gray
  • Application: Designed for PVC and aluminium profiles cutting
  • Product description:CNC PVC Profile Double Head Cutting Machine, two head CNC cutting machine for PVC profile mainly used for cutting aluminum and uPVC door and window profiles, Is the important pvc profile double head
  • Inquiry

UPVC Profile CNC Double Head Cutting Machine China PVC CNC Double Cutting Head Saw Machine Supplier

CNC double head cutting machine system CNC double head cutting machine heads CNC double head cutting saw feeding syetem CNC double head cutting saw cutting profile

Product description

1. This CNC double head cutting-off machine is mainly used for cutting uPVC and aluminum window profiles. CNC control systems, reasonable design structure, and high-quality components ensure the high quality and high efficiency of cutting pvc Windows and doors profiles, is the ideal pvc window profile double saw cutting machine for making pvc Windows. This machine allows you to make uPVC & aluminum Windows and doors easily and efficiently.

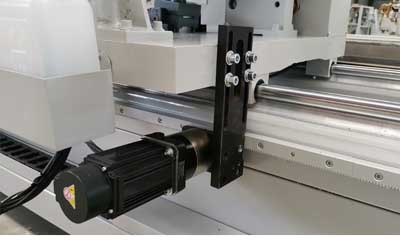

2. The double head CNC profile cutting machine feeding system adopts linear guide pair, with high accuracy and stability.

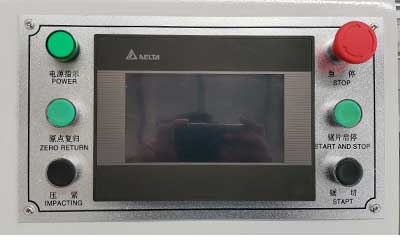

3. Adopts CNC control system, automatic positioning of cutting size and angle, easy operation, and precise cutting.

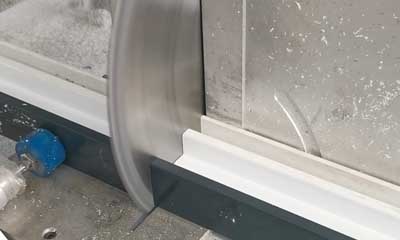

4. The PVC mitre saw blade of the cutting saw rotates smoothly due to high accuracy spindle.

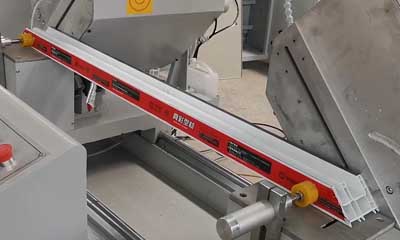

5. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.

6. Two heads of the CNC saw cutting  machine can work together or single, when together work, can cut off the required length and angle at one time.

7. Power supply protects system from voltage overload.

Technical specifications


Input power
380V/50Hz
Total power
2×1.5Kw
Spindle speed
2800r/min
Working air pressure
0.5~0.7MPa
Diameter of blade
450mm
Dimensions:(Width×Depth×Height)
5100×1300×1900mm
Machine weight
850Kg
Feeding speed 0~3m/min
Cutting length 420~3700mm
Cutting angle 45°,90°
Cutting height
45°max×200mm,90°max×300mm

*All specifications, dimensions, and design characteristics are shown in this CNC double head PVC cutting-off machine are subject to change without notice.
