uPVC Window Glazing Bead Cutting Machine

  • Product Item : SYJ03-1800
  • Brand: OKNA
  • Color: gray/white
  • Country of Origin: China
  • Application: Designed for PVC glazing bead cutting
  • Product description:PVC Window Glazing Bead Cutting Machine for sale, PVC glazing bead cutting saw used for cutting uPVC glazing bead profiles, High cutting precision and best price, pvc glazing bead cutting saw China su
  • Inquiry

UPVC Window Glazing Bead Cutting Machine for Sale

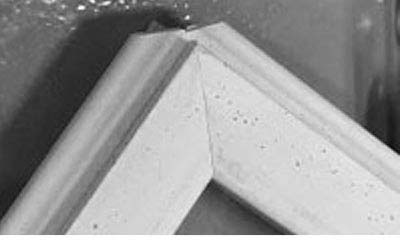

glazing bead cutting process pvc window glazing bead cutting pvc window glazing bead

Product description

1. The PVC window glazing bead cutting machine uses two saw blades to cut at 45 degrees at the same time, and can cut two beads at one time. It is a necessary pvc window machine for pvc window assembly glass process.

2. This upvc glazing bead cutting saw is equipped with two switch buttons. Press one of them to clamp the profile, while pressing the two buttons at the same time, the equipment will run the glazing bead cutting process to ensure safe hand operation.

3. The profile is clamped by four vertical cylinders.

4. This PVC bead cutting saw is equipped with a locking device, the cutting depth can be positioned by adjusting the height of the saw worktable.

5. According to the chemical properties of the profile, the cutting speed of the V port can be adjusted.

6. Need to make backing plates according to different profiles.

7. Configurable CNC size positioning system, fast and accurate cutting size positioning.

How to use this pvc window glazing bead cutting machine?

Cutting process: After the glazing bead is placed on the worktable of the cutting saw, press and hold a button by hand and not release it to clamp the glazing bead, and then press another button to start the cutting process, release both buttons at the same time, the saw blade returns to the original position.

Techniical specifications

power supply
380V/50Hz
Input power
2.2Kw
Motor rotary speed
2800r/min
Dimensions:(Width×Depth×Height)
560×1260×1350mm
Weight when empty
200Kg
Air pressure
0.5~0.8MPa
Air consumption
20L/min
Cutting height 33mm
Cutting length
320~1800mm

*All specifications, dimensions, and design characteristics are shown in this PVC glazing bead cutting machine are subject to change without notice.

Configuration Recommendations

The left side of the pvc window glazing bead cutting saw can be equipped with a CNC size positioning system, The cutting size of the bead can be quickly and accurately positioned.

The CNC sizing system adopt double linear guide rail, fast and accurate positioning, can input multiple sets of profile cutting size at the same time.

PVC window CNC pasitioning glazing bead cutting machine manufacturers
