UPVC Profile Mullion Cutting Saw

  • Product Item : SJT02-350
  • Color: gray/white
  • Brand: OKNA
  • Country of Origin: China
  • Application: Designed for PVC profile mullion cutting
  • Product description:UPVC Profile Mullion Cutting Saw, PVC profile Mullion cutter designed for UPVC Window Mullion profile cutting in one time, is the the necessary pvc window processing equipment to make uPVC window wit
  • Inquiry

UPVC Window Mullion Profile Cutting Machine

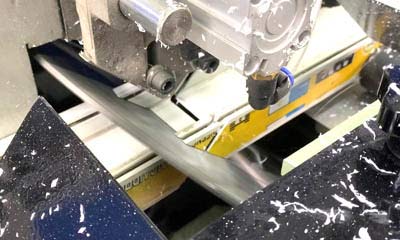

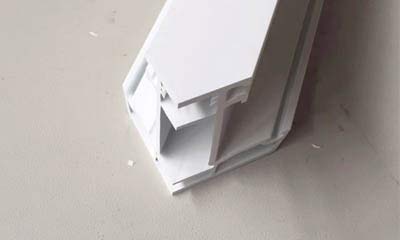

mullion profile cutting pvc window mullion cutting process pvc window mullion cutting

Product description

1. The automatic PVC profile mullion cutting-off machine is the necessary pvc window processing equipment to make uPVC windows with mullion frames, with simple operation, convenient adjustment, and high production efficiency.

2. This PVC mullion profile cutting machine is equipped with two saw blades, which can automatically complete the cutting of mullion profiles at one time, with high production efficiency. The size is accurate.

3. Use vertical and horizontal pneumatic clamping to ensure that the profile does not move when cutting.

4. The cutting depth can be adjusted according to the width of the profile to ensure that the cutting center is symmetrical. The feed speed of the saw blade can be adjusted according to the chemical characteristics of the mullion profile.

5. Equipped with a special clamping device to clamp the upper triangular profile after cutting to ensure safe operation.


Technical specifications

Power supply
380V/50Hz
Input power
2.2Kw
Motor rotary speed
2800r/min
Dimensions:(Width×Depth×Height)
1100×1720×1390mm
Weight when empty
300Kg
Air pressure
0.5~0.8MPa
Air consumption
20L/min
Cutting height 90mm
Cutting length

350~2100mm

*All specifications, dimensions, and design characteristics are shown in this PVC mullion profile cutting machine are subject to change without notice.
