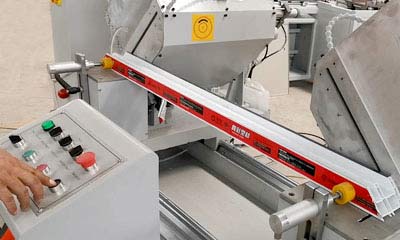

1. This pvc window processing machine Digital Display Double Head Cutting Machine is specially designed for cutting
aluminum and uPVC window profiles. Reasonable design structure and high-quality
components ensure the high quality and high efficiency of cutting upvc Windows
and doors profile, is the ideal window equipment for making upvc
window and door.
2. The feeding system of the cutting machine adopts a high-quality linear guide
rail, with high precision and good stability. The saw blade adopts
high-precision spindle with stable rotation.
3. The uPVC profile cutting machine can cutting-off 45 degree or 90 degree of the profiles according
to different requirements of pvc window-door.
4. Pneumatic and hydraulic feed system ensures accurate and stable feed.
5. Carbide saw blade processing precision, high durability.
6. The two heads of the digital display cutting saw can be used together or
separately to efficiently cut the required length and Angle.
7. Power supply
protects system from voltage overload.
This machine allows you to make uPVC & aluminum Windows and doors easily
and efficiently. Please contact us for more profile cutting machine details.
According to different customer requirements, the color and technical structure
of the machine will be improved.
Power supply |
380V/50Hz |
Total power |
2×1.5Kw |
Working air pressure |
0.5~0.8MPa |
Air consumption |
80L/min |
Diameter of blade |
∮450×30∮×4.4mm z=120 |
Spindle speed |
2800r/min |
Feeding speed |
0~3m/min |
Cutting length |
400~3700mm |
Cutting angle |
45°, 90° |
Dimensions:(Width×Depth×Height) |
5100×1300×1900mm |
Weight when empty |
850Kg |
*All specifications, dimensions, and design characteristics are shown in this PVC double head cutting machine are subject to change without notice.
