  • CNC Corner Cleaning Machine For PVC Window
  • CNC Corner Cleaning Machine For PVC Window
CNC Corner Cleaning Machine For PVC WindowCNC Corner Cleaning Machine For PVC Window

CNC Corner Cleaning Machine For PVC Window

  • Product Item : JQK04-CNC-120
  • Brand: DFAN
  • Color: gray or white
  • Country of Origin: China
  • Application: Designed for PVC window corner automatic cleaning
  • Product description:uPVC CNC corner cleaning machine, pvc window automatic corner cleaning machine China supplier, used for cleaning the pvc window corner, pvc corner cleaning machine price, China CNC corner cleaner supp
  • Inquiry

uPVC Window CNC Corner Cleaning Machine Automatic Corner Cleaner

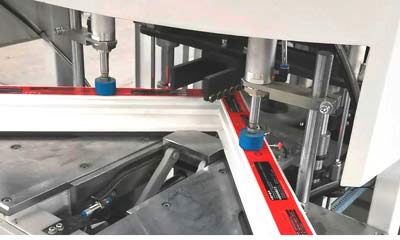

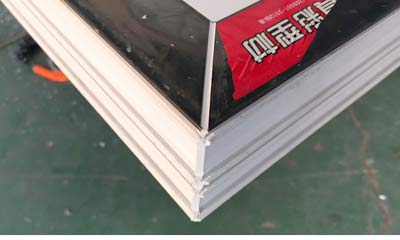

CNC corner cleaning machine broach pvc window corner cleaning process pvc window cnc corner cleaning process the effect of pvc window corner cleaning


Product description

1. This uPVC CNC corner cleaning machine is professionally used to clean the upper & below surface of pvc window frames and the welding seam cleaning of the outer 90° corner. It is a professional PVC corner cleaning equipment for making pvc doors and windows.

2. Use saw blades to milling the outer corners, long use life, upper and below roller broaches to clean the upper and below surface welds.

3. X-axis and Y-axis use ball screws, closed-loop private server motor drive to ensure high accuracy of cleaning corner, speed can be adjusted.

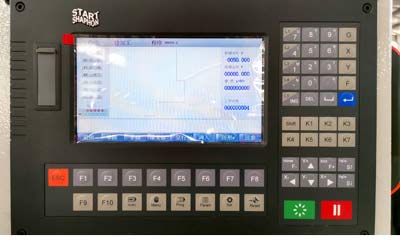

4. Adopt industrial-grade computer system, closed-loop control, simple programming in teaching mode, directly call the automatic operation of the angle clearing process after programming. Flexibility and a constantly high processing quality is therefore guaranteed for your PVC window production.

5. Programs for various profiles can be programmed and stored, and there is no need to reprogram the program next time it is used.

6. The operation of this CNC corner cleaner is simple, after a call out the program of the profile, when the window frame is placed in the positioning position, the CNC corner cleaning machine automatically runs the corner cleaning process.

Technical specifications

Power supply
380V/50Hz or customer specification
Input power
2.0Kw
Dimensions:(Width×Depth×Height)
2000×1930×1700mm
Weight when empty
550Kg
Air pressure
0.5~0.8MPa
Air consumption
200L/min
Main-shaft Revolution
2800r/mm
Prosessing profile height
30~120mm
Prosessing profile width
30~110mm

*All specifications, dimensions, and design characteristics are shown in this CNC corner cleaning machine are subject to change without notice.
