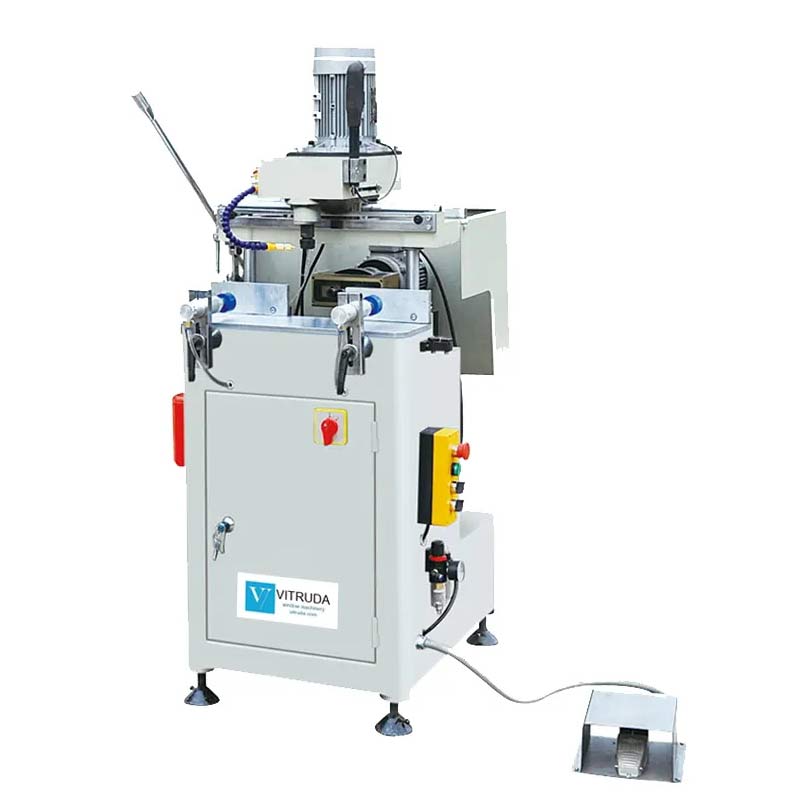

SSKC02B Copy Router With Triple Drilling

DESCRIPTIONS

This VTD02B aluminum copy router with triple drilling is used for milling appropriate slots on aluminum profiles for mounting locks, grips, hinges, latches, water slots, and drilling lock holes,
Equipped with a 1:1 ratio standard milling template, which can quickly copy routing various lock holes, the professional templates can be customized for special window-making shaped holes.
This copy router with triple drilling has two independent units, one vertical copy routing unit, and one horizontal triple drilling unit which be placed behind.

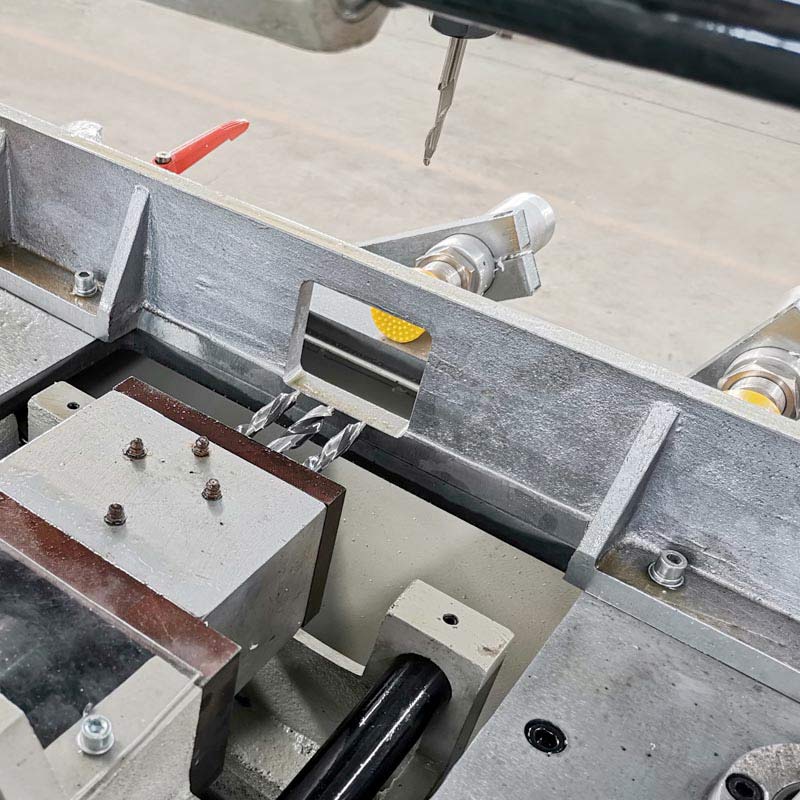

The triple drilling unit can drill lock holes easily.

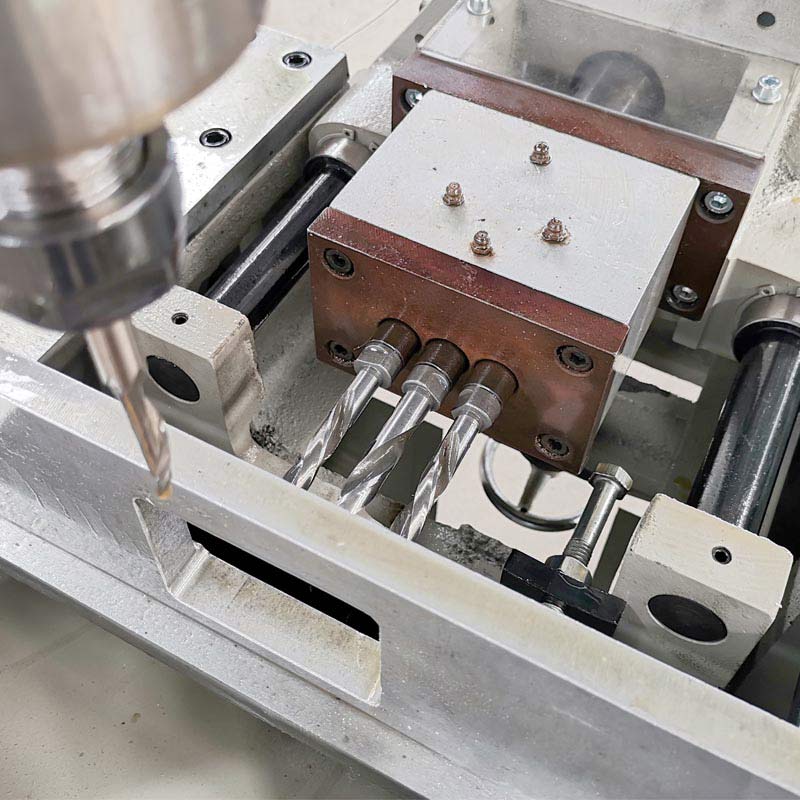

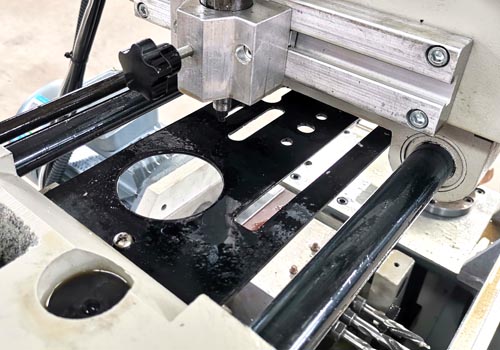

aluminum Copy router with triple drilling lock hole drilling system and copy template

FEATURES

• Linear guide rails are used for the movement of the copy router with triple drilling and the triple drilling system. making it easy to work on different aluminum profiles.
• Routing to stops or universal template in a 1:1 ratio.
• The vertical handle wheel for easy adjusting hole drilling height.
• Horizontal triple drill and vertical aluminum copy routers with a special cut-out working table to realize.
• Use high-speed steel drill bits for aluminum profiles.
• Copy routers unit can be used with the copying template.
• 2 horizontal pneumatic clamping.

Technical Parameters

• Power supply: 380 V/50 Hz
• Input power: 2.2 Kw
• Air pressure: 0.5~0.8 MPa
• Air consumption: 30 L/min
• Milling cutter Diameter: Ø 5 mm / Ø 8 mm
• Copy milling range: 100×290 mm
• Slot Depth(max): 30 mm
• Main-Shaft Revolution: 12000 r/min
• Dimensions (Width × Depth × Height): 1000×1130×1500 mm
• Net weight: 300 Kg
