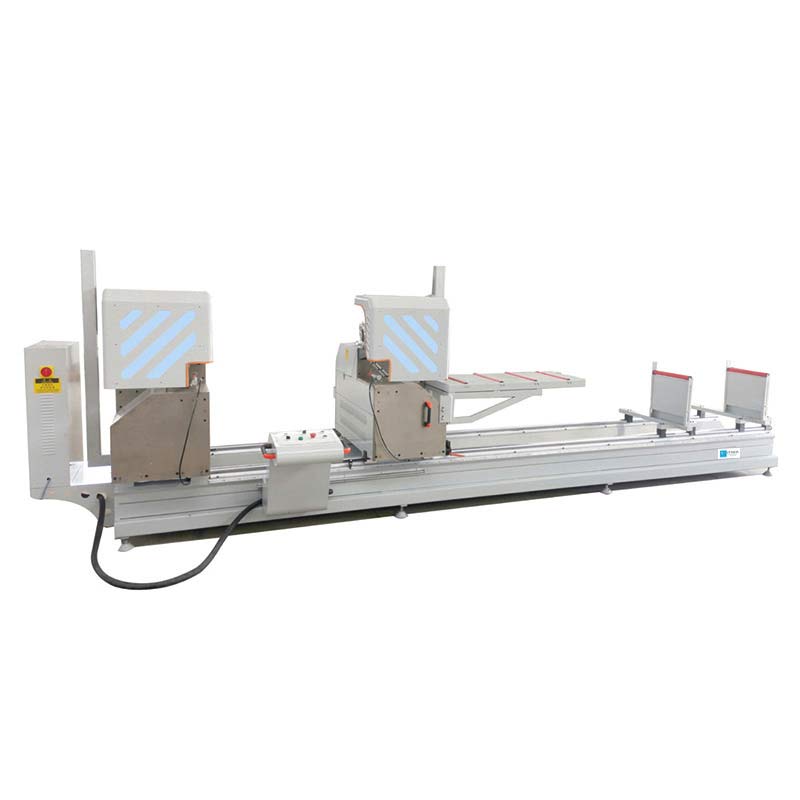

Double Head Cutting Machine For Multiple Window Profiles

Double Head Cutting Machine For Multiple Window Profiles

Product Item : LJZ2C-CNC-550*4200
Category： UPVC Cutting Machines
Color : green/white
Orign:China
Application: Designed for aluminum profiles cutting
INQUIRY EMAIL

Double Head Cutting Machine For Multiple Window Profiles

PRODUCT DESCRIPTIONS

1.Double Head cutting machine for multiple window profiles specially designed for cutting multiple aluminum and uPVC door and window profiles in one time, and Improve window production efficiency.

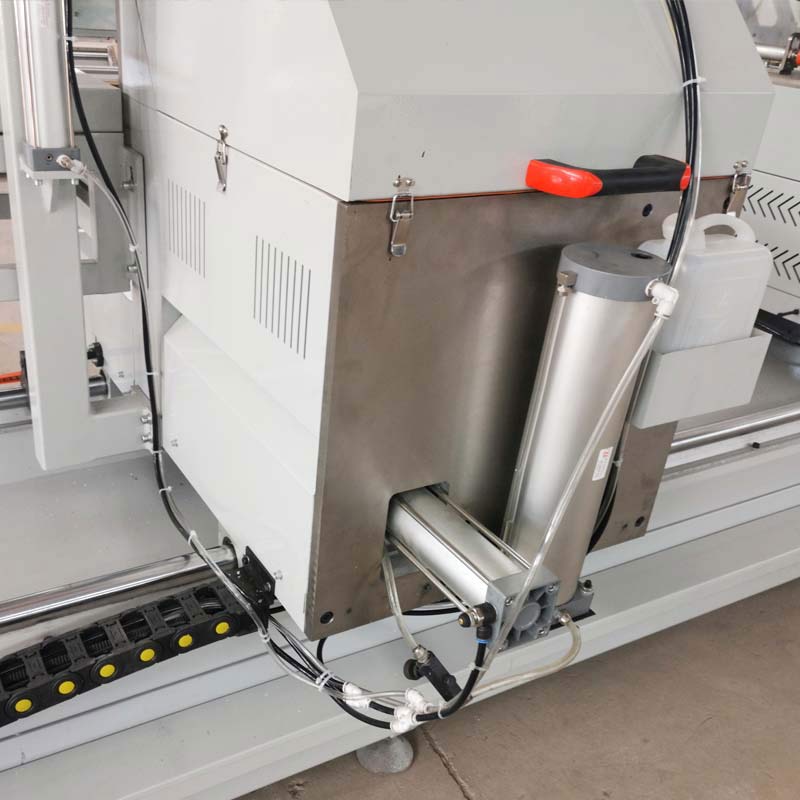

2. The feeding system of the double head cutting machine adopts high-quality linear guide rail, with high precision and good stability. The saw blade adopts high-precision spindle with stable rotation.

3. It can be cut 45° only.

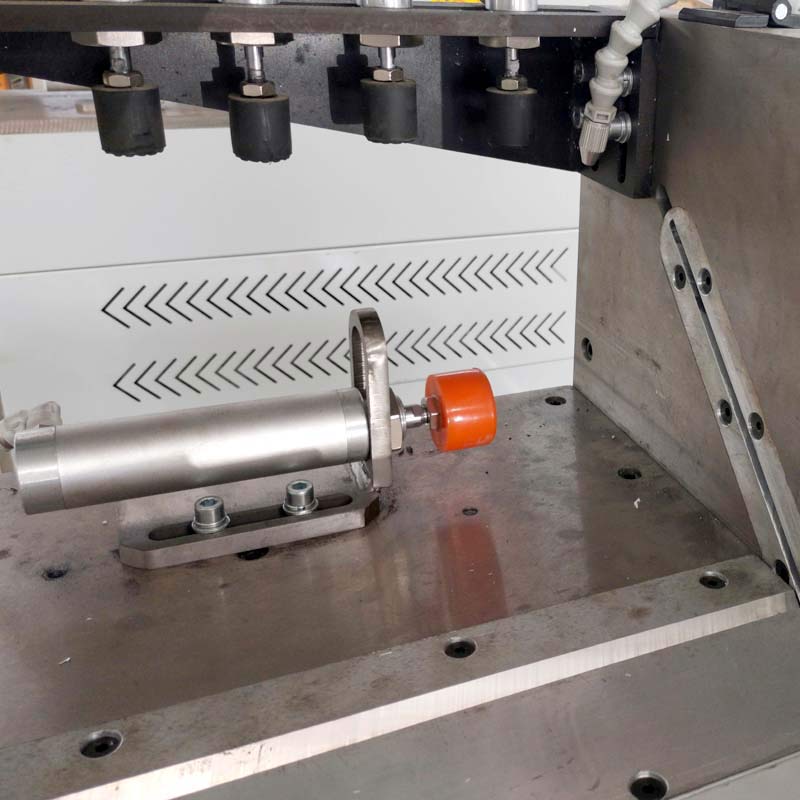

4. Pneumatic and hydraulic feed system ensures accurate and stable feed.

5. Carbide saw blade processing precision, high durability.

6. The two heads of this double Head cutting machine for multiple window profiles can be used together or separately to efficiently cut the required length and Angle.

7. Power supply protects system from voltage overload.

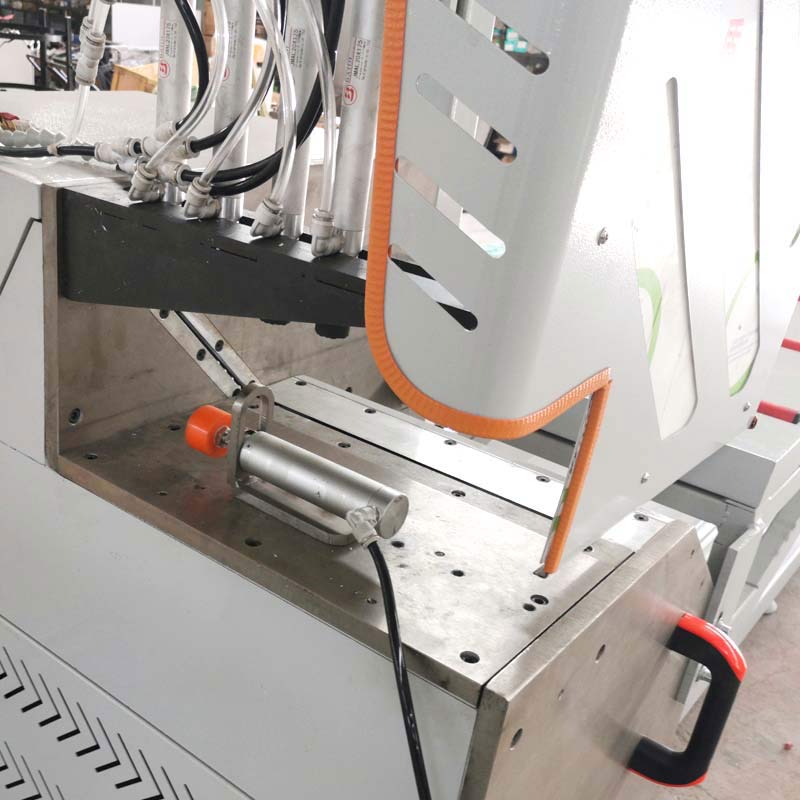

Double Head Cutting Machine For multiple window Profiles frame cutting

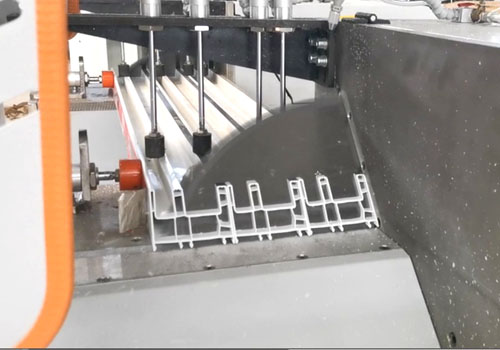

Double Head Cutting Machine For multiple window Profiles cutting

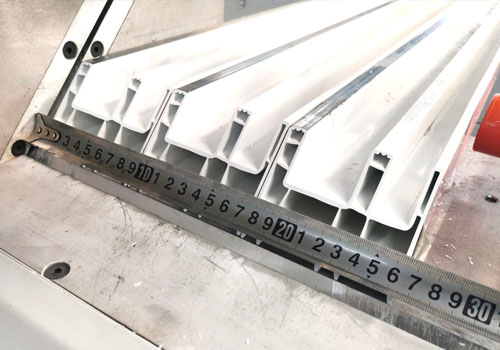

Double Head Cutting Machine For multiple window Profiles cutting size

Double Head Cutting Machine For multiple window Profiles cutting size

TECHNICAL SPECIFICATIONS

Power supply: 380 V/50 Hz
Total power: 6.0 Kw
Working air pressure 0.5~0.8 MPa
Air consumption: 300 L/min
Diameter of blade: 550 mm
Spindle speed: 3200 r/min
Feeding speed: ~3 m/min
Cutting length: 400~4200 mm
Cutting angle: 45°
Dimensions:(Width×Depth×Height): 5300×1350×1750 mm
Machine weight: 1950 Kg
