  • UPVC Window Single Head Seamless Welding Machine
  • UPVC Window Single Head Seamless Welding Machine
  • UPVC Window Single Head Seamless Welding Machine
  • UPVC Window Single Head Seamless Welding Machine
UPVC Window Single Head Seamless Welding MachineUPVC Window Single Head Seamless Welding MachineUPVC Window Single Head Seamless Welding MachineUPVC Window Single Head Seamless Welding Machine

UPVC Window Single Head Seamless Welding Machine

  • Product Item : HJ05-120
  • Brand:OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for PVC window corner welding
  • Product description:Single Head PVC Seamless Welding Machine price, UPVC window single head seamless welding machine is mainly used for welding colorfull pvc window profiles, automatic uPVC single corner seamless welding
  • Inquiry

UPVC Window Single Head Seamless Welding Machine PVC Seamless Single Corner Welder Suppliers

single head seamless welding machine single corner seamless welding machine single head seamless welding machinery pvc window seamless welding corner

Product description

1. This uPVC Window Single Head Seamless Welding Machine is mainly used for welding the uPVC Window colorful and common profiles, which is a necessary pvc welding machine for your factory to making uPVC windows and doors .
2. Seamless switching of any color can be completed freely without the adjustment board.
3. This single corner seamless welding machine is controlled by a PLC, driven by air, and the auxiliary motion is CM oil-free bearing and linear ball bearing.

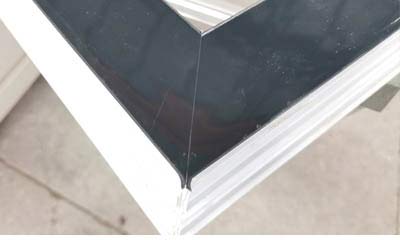

4. There is no need for cleaning the surface of the colorful pvc window corner after the completion of the window welding, and the size of the welding gap can be strictly controlled, the surface of the welding seam after welding is very beautiful and smooth.
5. The corner welding cutting tool made of alloy tool, realize the standardization, support tool exchange.

6. All parameters (e.g. heating time, joining time, welding temperature, joining pressure and fusing pressure, etc.) of each single profile can be individually adjusted.

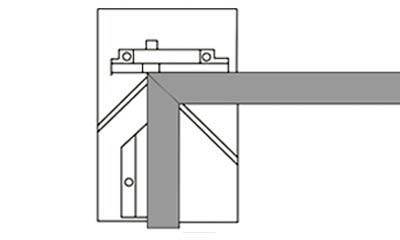

7. Various corner shapes such as ┓┳┏┓┏┳ , can be welded in one operation with this single head seamless welding machine.

single head seamless welding machine corner welding single head seamless welding machine mullion welding

how to make colorful pvc window with one head seamless welding machine? Please watch the pvc window seamless weld processing video below

Technical specifications

Power supply
220V/50Hz or customer specification
Input power
2.2 Kw
Dimensions:(Width×Depth×Height)
650×1100×1850 mm
Weight when empty
400 Kg
Air pressure
0.5~0.8MPa
Air consumption
20L/min
Welding width(max) 120mm
Welding height
20~120mm

*All specifications, dimensions, and design characteristics are shown in this PVC SINGLE HEAD SEAMLESS WELDING MAHCINE are subject to change without notice.



pvc profile welding process and technology
