Tooth Opening and Strip Connecting Machine for Aluminium Profiles

  • Product Item : KCJ-02
  • Brand: OKNA
  • Color : gray or white
  • Country of Origin: China
  • Product description:Aluminium Profile Tooth Opening and Strip Connecting Machine is mainly used for opening the aluminum profile on the inner surface tooth of the heat insulation strip slot to increase the friction of th
  • Inquiry

Tooth Opening and Strip Connecting Machine for Aluminium Profiles

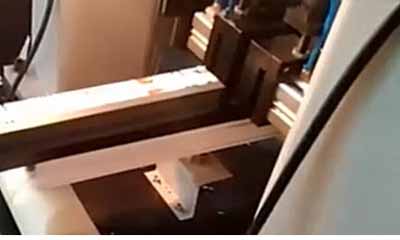

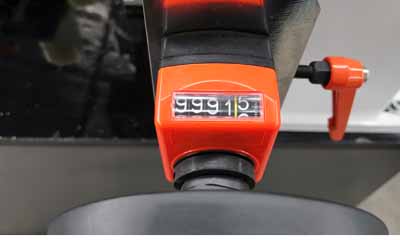

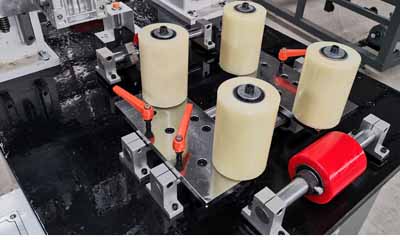

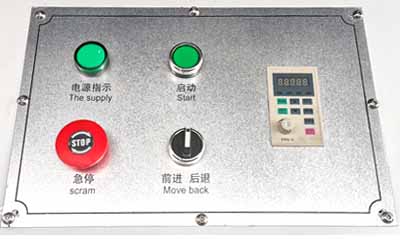

aluminum profile strip connecting machine operation box aluminum profile tooth-open machine details aluminum tooth opening machine wheels aluminum profile strip connecting

Product description

1. This Aluminium Profile Tooth Opening and Strip Connecting Machine is mainly used to roll the aluminum profile on the inner surface of the heat insulation strip slot to increase the friction of the composite of the broken aluminum profile and the heat insulation strip. The aluminum shear force is greatly improved by opening the teeth in the slot of the profile through the high-speed operation of the cutter. It is equipped with a special clamping pneumatic device. The function of processing aluminum alloy profile notch to cut teeth and wear heat insulation strips. The high-speed tooth cutter inserts the aluminum alloy profile into the notch of the heat insulation strip to open the teeth to improve the shearing force of the heat insulation strip and the aluminum alloy composite profile. It is one of the main equipment in the production of heat insulation aluminum alloy profiles.

2. The tooth-open cutting blade can be adjusted to adapt to different shapes of aluminium profiles.

3. Equipped with a threading clamping device, the threading process can be carried out at the same time after the teeth are opened.

4. Each cutting blade can be adjusted individually.

5. Use high-quality hard alloy knurled blades.

6. Through the guiding structure, the two heat insulation strips are accurately inserted into the aluminum trough, the speed of the stripping can be adjusted, the operation is simple and flexible, and the production efficiency is greatly improved.

7. A Strip Connecting mechanism is installed at the rear of the aluminum Tooth Opening and Strip Connecting Machine, and the heat insulation strip is clamped by pneumatic control. While the tooth is opened, the aluminum profile advances and passes through the clamped heat insulation strip until it reaches six meters. After opening the teeth, the strip connecting stops.



Technical specifications


Power supply

380V/50Hz or customer specification

Total power

1.5Kw

Dimensions:(Width×Depth×Height)

1000×1100×1550mm

Weight when empty

600Kg

Air pressure

0.5~0.8MPa

Air consumption

20L/min

Cutter diameter

∮80mm

Supporting wheels height error

0~20mm

Speed

0~90mm /min(adjustable)

Profile section

Width 260mm*Height 260mm

*All specifications, dimensions, colors, and design characteristics are shown in this Tooth Opening and Strip Connecting Machine for Aluminium Profiles are subject to change without notice.
