  • Single Head High-Speed Copy Routing Machine for Aluminum Profiles
  • Single Head High-Speed Copy Routing Machine for Aluminum Profiles
Single Head High-Speed Copy Routing Machine for Aluminum ProfilesSingle Head High-Speed Copy Routing Machine for Aluminum Profiles

Single Head High-Speed Copy Routing Machine for Aluminum Profiles

  • Product Item : LSX1A-100
  • Brand:OKNA
  • Color : gray/white
  • Country of Origin: China
  • Aluminum profile hole milling
  • Product description:Single Head High Speed Copy Routing Machine, big quality and good price, aluminum copy router machine used for routing lock hole and water slot or hardware hole of aluminium profiles, aluminum millin
  • Inquiry

Single Head High-Speed Copy Routing Machine for Aluminum Profiles

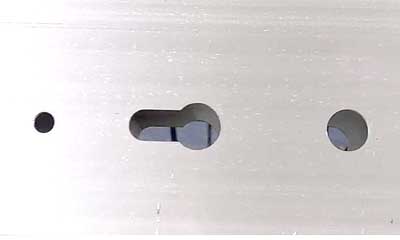

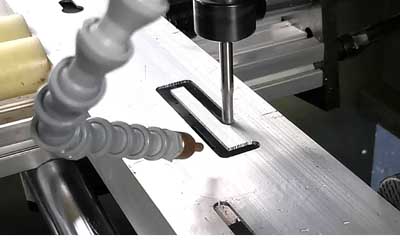

aluminum high speed copy routing machine milling process aluminum cory router machine rectangle milling process aluminum hardware hole milling with copy ruter aluminum single head copy router

Product description

1 This single head high-speed copy routing machine is used to process various types of holes and slots such as aluminum alloy window keyholes, drainage grooves, water slots, and hardware installation slots. It is the main aluminum profile milling machine for making aluminum windows and doors.

2 The aluminum copy router machine is equipped with standard profiling templates for various holes and slots of aluminum alloy to control profiling size, profiling ratio is 1:1, the profiling is easy to adjust and replace, and the application range is wide. Templates can be customized according to customer aluminum window processing requirements.

3 This milling machine adopts a high-speed milling motor and profiling needle milling head, and the two-stage profiling needle design is suitable for various profiling size requirements.

4 It can be positioned by the rulers at both ends, and the holes and grooves in different positions of the aluminum alloy window profile can be processed.

5 The milling depth can be controlled by the knob button and kept unchanged, which is convenient for milling processing.

6 Through the high-speed milling and atomization device, the grooves processed on the aluminum profile are smooth and clean.



Technical specifications


Power supply
380V/50Hz or customer specification
Input power
1.5Kw
Dimensions:(Width×Depth×Height)
2180×1000×1700mm
Weight when empty
180Kg
Air pressure
0.5~0.8MPa
Air consumption
10L/min
Cutter Diameter ∮5mm    ∮8mm
Copy milling range
235×100mm
Main-Shaft Revolution

12000r/mm
