  •  Single Head Aluminum Corner Cutting Machine
  •  Single Head Aluminum Corner Cutting Machine
 Single Head Aluminum Corner Cutting Machine Single Head Aluminum Corner Cutting Machine

Single Head Aluminum Corner Cutting Machine

  • Product Item : LJZ05-300
  • Brand: DFAN
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for aluminum profile corner cutting
  • Product description:Single head aluminum corner cutting machine is primarily used for cutting aluminum profile corner, aluminum window corner sawing machine price, aluminum profile corner cutting machine China supplier,
  • Inquiry

Aluminum Profile Single Head Corner Cutting Machine

aluminum corner cutting saw machine single head aluminum corner cutting machine aluminum corner cutting aluminum corner

Product description

Single Head Corner Cutting Machine for Aluminum Profile

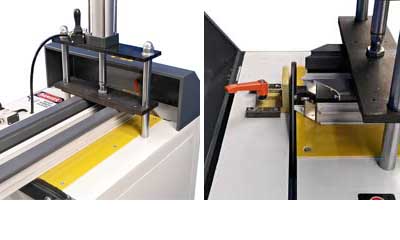

1. This aluminum window corner cutting machine is mainly used for cutting corners of aluminum alloy windows. It consists of a machine frame, a profile positioning and pressing mechanism, a fixed-length adjustment mechanism, and a pneumatic control system.

2. The corner cutting machine saw blade adopts vertical lifting and stable operation.

3. The aluminum corner cutting size can be adjusted according to aluminum profiles and aluminum corner hardware.

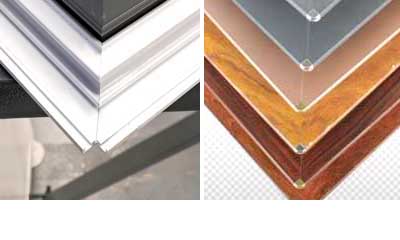

4. After aluminum windows are cut with this corner cutting saw and installed with special corner hardware, the corners of the window can avoid the harm to people, especially children.

Technical Description


Power supply
380V/50Hz
Total power
0.75Kw
Working air pressure 0.5~0.8MPa
Air consumption
10L/min
Diameter of blade
300mm
principal axis rotate speed
2800r/min
Cutting heigth
80mm
Cutting width
150mm
Dimensions:(Width×Depth×Height)
600×500×1200mm
Weight when empty
150Kg

*All specifications, dimensions, colors, and design characteristics are shown in this single head aluminum corner sawing machine are subject to change without notice.
