Four Head Welding Machine For uPVC Window

  • Product Item : HJ02-4×4500
  • Brand: OKNA
  • Color : gray or white
  • Country of Origin: China
  • Application: Designed for PVC window corner welding
  • Product description:Four Head PVC Window Welding Machine for Sale, uPVC four head welding machine price, pvc window 4-head welding machine from China supplier, pvc window 4 corner welding machine for sale, 4 head PVC wel
  • Inquiry

Four Head PVC Welding Machine For uPVC Window and Door

four head welding machine head details four head welding machine Technical Parameters pvc welding machinery details pvc window four-head welder corner details

Product description

1. This uPVC four-head welding machine is designed for welding uPVC windows and doorsis mainly uPVC win-door processing equipment for making PVC doors and windows. It is composed of two left heads and two right heads, which can complete various forms of PVC window welding. It is a high-efficiency window machinery for you fatory to processing PVC door and window. It adopts pneumatic transmission and movement, CM oil-free lubrication sleeve and linear motion bearings.

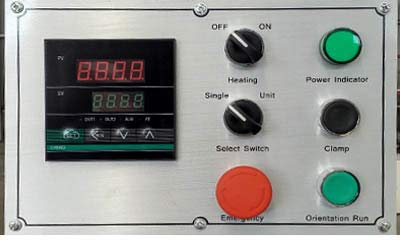

2. The adopted programmable controller (PLC) ensures the four-head pvc welding machine running more steady and reliable.

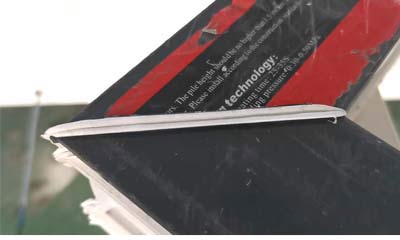

3. Adopt the second pressing function to ensure the corner welding strength.
4. Professional three-layer welding boards to meet different height of
pvc profile.
5. The head of the welding machine can be used individually, combinative, or jointly as well as be combined at will.

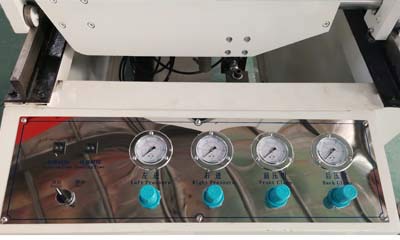

6. The adaptability of the HJ02-4*4500 to different profiles is an important plus for your production: all parameters such as heating time, joining time, welding temperature, joining pressure and fusing pressure, etc. can be individually adjusted.

7. In order to ensure the accuracy of the mullion corner welding, it is necessary to use a V cutting sawing machine and a PVC mullion profile cutting machine to cut the pvc window profile.

8. Various PVC window corner shapes such as ┓┳┏┓┏┳ ┏┳┓ ┏┳┳┓, can be welded in one operation with this four head pvc welding machine.

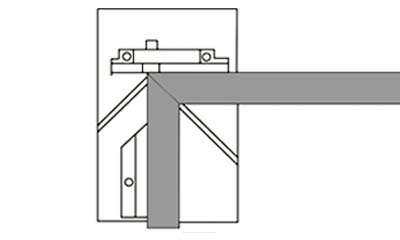

four head welding machine No. 1 head four head welding machine No.2 head four head wekding machine No. 3 head four head welding machine No. 4 head four head welding machine four corner welding

four head welding machine mullion welding four head welding machine two mullions welding

Technical specifications

Power supply
380V/50Hz or customer specification
Input power
4.5Kw
Dimensions:(Width×Depth×Height)
5400×1100×1700mm
Weight when empty
1450Kg
Air pressure
0.5~0.8MPa
Air consumption
150L/min
Welding width(max) 120mm
Welding height
20~120mm
Welding range
400~3500mm

*All specifications, dimensions, and design characteristics are shown in this four head PVC welding machine are subject to change without notice.

How to Make uPVC Window with this Four Head Welding Machine?

Click here: PVC window welding process and technology
