Four Head UPVC Profile Seamless Welding Machine

  • Product Item : HJ05-4×4500
  • Brand: OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application: Designed for PVC window corner welding
  • Product description:Four Head PVC Seamless Welding Machine for sale, uPVC window 4-head seamless welding machine is the critical seamless welding equipment for manufacturing PVC colorful windows, uPVC window four-head se
  • Inquiry

uPVC Window Four-Head  Seamless Welding Machine Four-head PVC Seamless Welder

four-head seamless welding machine head four head seamless welding machine system four head seamless welding machine right head four head seamless welding machine details

pvc window seamless corner PVC seamless corner welder

Product description

1. This uPVC window four-head seamless welding machine is mainly used to welding the colorful and common profiles of uPVC doors and windows. It is the ideal pvc window seamless welding machinery to manufacturing uPVC windows and doors. The pressure jaws are equipped with cutting tools to realize the corner Seam welding (0.15~0.2mm), especially suitable for the production of luxury colorful pvc doors and windows.

2. It is composed of two left heads and two right heads. Through the combination of four heads, the welding of various structural windows can be realized.

3. You can freely complete seamless switching of any color without adjusting the board.

4. This PVC window 4-head seamless welding machine is controlled by PLC, driven by air, and auxiliary motion is CM oil-free bearing and linear motion bearing.

5. After the pvc window corner welding, there is no need to clean the surface of the corner, the size of the welding gap can be strictly controlled, and the surface of the welding seam after welding is very beautiful and smooth.

6. The cutting tools made of alloy tools are standardized and support tool interchange.

7. The parameters of this four-head PVC seamless welder such as profile heating time, corner joining time, profile welding temperature, corner joining pressure and profile clamping pressure, etc. can be individually adjusted according to different chemical properties of the PVC window profiles.

8. Automatic welding head positioning, knife limitation, and the electronically controlled temperature of the heater plates guarantee the highest precision and window corner strength.

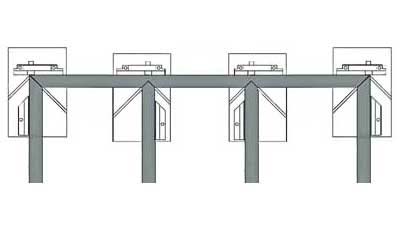

9. Various PVC seamless corner shapes such as ┓┳┏┓┏┳ ┏┳┓ ┏┳┳┓, can be welded in one operation with this 4-head PVC seamless welding machine.


four head seamless welding machine No.1 head four head seamless welding machine No.2 head four head seamless welding machine No.3 head four head seamless welding machine No.4 head four head seamless welding machine four corner welding

four head seamless welding machine mullion welding four head seamless welding machine welding process

How to make colorful PVC windows with this four-head PVC seamless welding machine? Please watch the colorful PVC window manufacturing video below.

Technical specifications

Power supply
220V/50Hz or customer specification
Input power
7Kw
Dimensions:(Width×Depth×Height)
5300×1100×2000mm
Weight when empty
1650Kg
Air pressure
0.5~0.8MPa
Air consumption
250L/min
Welding width(max) 120mm
Welding height
20~120mm
Welding range
400~4500mm

*All specifications, dimensions, and design characteristics are shown in this four-head PVC seamless welding machine are subject to change without notice.
