  • Copy Routing Machine With Triple Lock Hole Drilling
  • Copy Routing Machine With Triple Lock Hole Drilling
  • Copy Routing Machine With Triple Lock Hole Drilling
Copy Routing Machine With Triple Lock Hole DrillingCopy Routing Machine With Triple Lock Hole DrillingCopy Routing Machine With Triple Lock Hole Drilling

Copy Routing Machine With Triple Lock Hole Drilling

  • Product Item : SSKC02B-100
  • Brand: OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application:Used for routing appropriate slots and lock hole drilling
  • Product description:Copy Routing Machine with Triple Lock Hole Drilling, door lock hole drilling machines suitable for drilling deep lock holes on aluminum door profiles, copy routing machines for aluminum profile price,
  • Inquiry

Copy Routing Machine With Triple Lock Hole Drilling

door lock hole drilling machine triple drill bits aluminum door lock hole drilling machine plan templat

COPY ROUTING MACHINE DESCRIPTIONS

1 This copy routing machine with triple lock hole drilling suitable for milling appropriate slots on aluminum and plastic profiles for mounting locks, grips, hinges, latches, water slots, and drilling lock holes.

2. Copy assembly matching the process, ability to open various channels independently of the copied assembly with profile gauges.

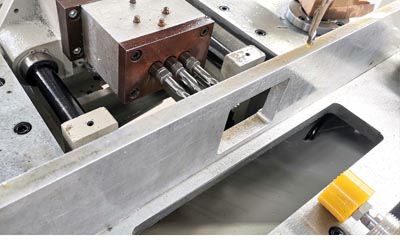

3. Triple grip slot drilling system placed behind.
4. Linear guide rails are used for the movement of the profile milling head and the triple lock hole drilling system.

5. Routing to stops or universal template in a 1:1 ratio.

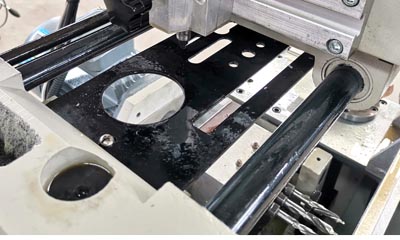

6. The copy routing machine with triple lock hole drilling equipped with a standard hole copy template. The copy template is standard equipped or specifically designed.
7. The vertical copy router handle wheel for easy adjusting hole milling height.
8. Horizontal triple drill and vertical copy router with a special cutout working table to realize.
9. Use high-speed steel drill bits for aluminum profiles.

COPY ROUTING MACHINE SPECIFICATIONS

Power supply
380V/50Hz
Input power
2.25Kw
Dimensions:(Width×Depth×Height)
1000×1130×1500mm
Weight when empty
300Kg
Air pressure
0.5~0.8MPa
Air consumption
30L/min
Cutter Diameter ∮5mm    ∮8mm
Copy milling range
90×290mm
Slot Depth(max)
30mm

*All specifications, dimensions, colors, and design characteristics are shown in this aluminum Copy Routing Machine with Triple Lock Hole Drilling machine are subject to change without notice.
