  • CNC Tube and Aluminum Extrusion Profile Bending Machine

CNC Tube and Aluminum Extrusion Profile Bending Machine

  • Product Item : MGW-CNC-30T
  • Brand: success
  • Country of Origin: China
  • Application: Designed for tube or profiles roll bending
  • Product description:This CNC tube bender & aluminum extrusion profile bending and forming machine is suitable for bending large sections of different materials, CNC extrusion bender price, tube and pipe bending CNC machi
  • Inquiry

Aluminum Extrusion Bending and Forming Machine Manufacturers

CNC extrusion bending machine for sale extrusion CNC bender suppliers

aluminum arc window aluminum bending machinery bending product banding machine for steel steel bending with bending machine

    PRODUCT DESCRIPTIONS

    1. This extrusion CNC bending machine is suitable for bending and forming large section profiles or pipes of different materials. Combining the latest technology with our skilled personnel, our CNC extrusion roll bender is equipped to handle your most difficult bending and forming requirements.
    It is used to curve or bend most aluminium extrusion and other material sections:
    Aluminium window profiles
    Architectural Extrusions
    Caravan Door & Window Frames
    Track Sections
    LED Extrusions
    Extrusions for Trains, Trams and Buses
    Curtain walls
    Sliding Track Extrusions
    Curtain Rail Extrusions
    Conveyor Track Sections
    Yachting Rail Sections
    2. The CNC bending equipment has three sets of rotating rollers and two sets of profile support rollers (mechanical adjustment) and one set of spindle hydraulic feeding mechanisms; the equipment adopts photoelectric positioning and passes through rollers that match the profile section. Using the principle of three points to form a circle, automatically control the displacement of the intermediate roller (press roller) (in the Y-axis direction), so that the profile can be bending and forming once or multiple times (in the X-axis direction) between the 3 sets of rollers to the required Radius;
    3. The professional forming program is adopted, and the section bending and forming can be automatically completed.

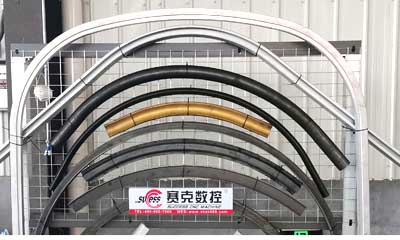

    4. This modern CNC extrusion bender made in China can bend various shapes such as C-shape, U-shape, full circle, oval, and multi-radius combinations.
    5. All three axes are active, and all have "anti-tilt" devices.
    6. The bending rollers of this CNC roll bender need to be customized according to the extrusion profiles or pipes.
    7. Equipped with CNC touchscreen control panel.


    TECHNICAL SPECIFICATIONS


    Power supply: 3phase 380V 50Hz/60Hz (3 Servo & Hydraulic)

    Total power:  13.0Kw
    Y-axis push rod rated thrust: 30T (Max. 35T)
    Y-axis push rod positioning accuracy: ≤0.02 mm
    Torque of X-axis: 9000N.M
    Three shaft speed: 1-15r/min
    Fixed axle spacing:  Adjustable 400~600mm
    Min bend radius: R=100mm(50mm top bend)
    Spindle diameter: 80mm
    Maximum diameter of roller mold: 360mm
    Minimum processing radius (inner arc):100mm
    Maximum section of machinable profile: Max width 200mm, max height 250mm
    Machine Dimensions:  L x W x H = 1400x1200x1500mm
    Net weight: 2200Kg
