CNC Aluminum Extrusion Profile Bending Machine

  • Product Item : LGW-CNC-13T-3
  • Brand: SUCCESS
  • Country of Origin: China
  • Application: Designed for aluminum extrusion automatic bending
  • Product description:CNC aluminum extrusion profile bending machine is mainly used for bending aluminum extrusion profiles, LED extrusion CNC bending. China aluminum roll bending machine price, CNC pipe and tube bending
  • Inquiry

CNC Aluminum Extrusion Bending Machine,Best Price in China

Aluminum extrusion bending machine CNC system Aluminum CNC extrusion bending machine price

CNC aluminum bengding products Aluminum CNC bender LED profile bending


PRODUCT DESCRIPTIONS

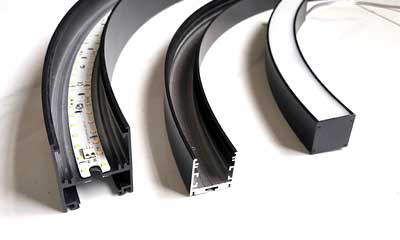

    1. This CNC aluminum extrusion bending machine is mainly used for the bending of aluminum extrusion profiles, iron tubes, copper, stainless steel, and other metal materials and special-shaped materials. It is an ideal equipment for aluminum arc window manufacturing, iron decoration manufacturing, stainless steel decoration manufacturing, steel material bending manufacturing, LED extrusion chandeliers bending, and curve processing. It is the best-selling product of China professional CNC aluminum extrusion profile bending machine manufacturers.

    2. This CNC bending machine for extrusion profiles and tubes adopts PLC programmable controller, double servo motor drive, and touch screen operation system.

    3. The bending speed is adjustable.

    4. The professional bending program is adopted, and the bending process can be automatically completed by selecting the bending shape program and only need to input the size of the products. The operation is easy, the process is controllable, and the bending shape has high dimensional accuracy.

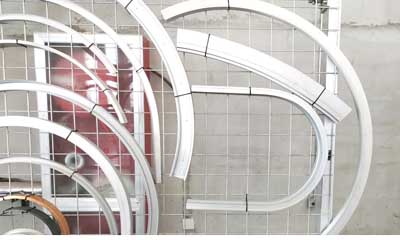

    5. This aluminum extrusion CNC bending machine can bend various shapes such as C-shape, U-shape, full-circle, oval, and multiple radius combinations.

    6. With double servo motors, the size of the bending shape is more accurate.

    7. The bending roller dies of this CNC aluminum extrusion bending machine needs to be customized according to the customer's aluminum extrusion profiles.

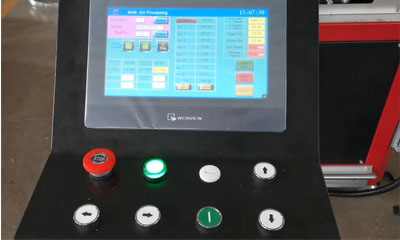

    8. Equipped with touchscreen control panel.

HOW IT WORKS?

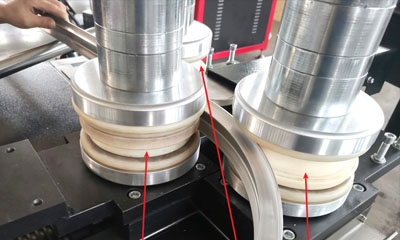

    First customize the CNC bending machine roller die and auxiliary nylon strip according to the extrusion shape.

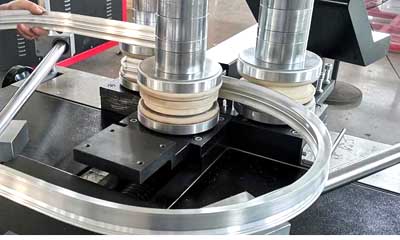

    aluminum CNC extrusion bending machine roller

    Enter the technical parameters of the machine in the machine settings, such as the starting position of the Y-axis, the diameter of the rollers, etc.

    Select the correct program in the machine program window according to the shape you want to make.

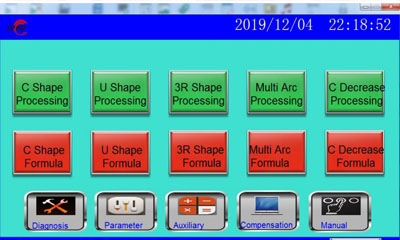

    CNC aluminum extrusion bending machine program

    Input the parameters of the shape in the program editing window, such as shape radius, arc length, rebound compensation, etc.

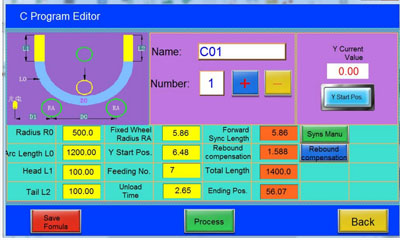

    CNC aluminum extrusion Bender program editor

    Press the process button to enter the processing process.

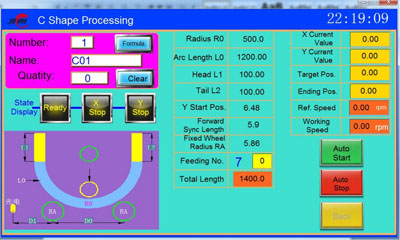

    aluminum extrusion shape bending processing

    Adjust the shape parameters according to the actual results of the produced shape until the shape meets the requirements.

TECHNICAL SPECIFICATIONS

Power supply
380V/50Hz
Total power
4.0Kw
Y axis push rod rated thrust 13T(Max.20T)
Y axis push rod positioning accuracy
0.01mm
Three shaft speed
1~15r/min
Fixed axle spacing
280~600mm
Min bend radius
R=100mm(50mm top bend)

Spindle diameter

50mm

Machinable max size

WxH=120X150MM

Dimensions:(Width×Depth×Height)
1500×1200×1400mm
Weight when empty
900Kg
