Automatic End Milling Machine for Aluminum Profiles

PRODUCT DESCRIPTIONS

1. Automatic end miiiling machine for aluminum profiles suitable for Milling the end tips of the profiles that will be joined with the sides of other profiles to form a multiple segmented window frame, and suitable for various profiles, is a critical aluminum window equipment for making aluminum windows.

2. This aluminum automatic end milling machine can clamp and mill multiple aluminium profiles at one time, which increased the processing efficiency.

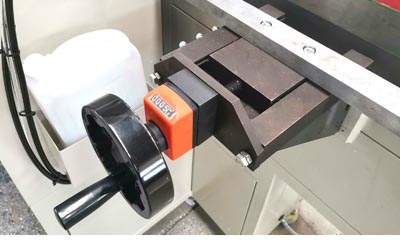

3. Adjust the position of the milling cutter through the hand-wheel to meet different processing requirements.

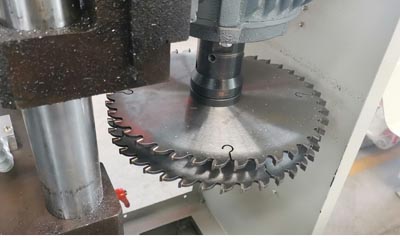

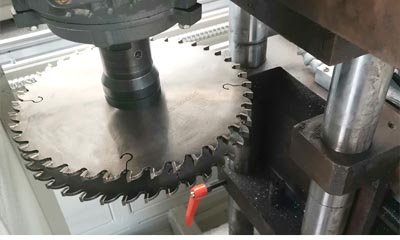

4. This automatic end milling machine for aluminum uses four horizontal milling cutters and a vertical milling cutter.

5. The milling cutters can be adjusted according to the profile specifications to meet the milling requirements.

6. There is no need to replace the milling cutters for milling different profiles. Save your money and time.

7. Large milling cutter diameter, high milling speed, and good processing result.

AUTOMATIC END MILLING MACHINE SPECIFICATIONS

Input Voltage	380V/50Hz
Input power	6.6Kw
Rating oil pressure	12MPa
Motor rotary speed	2800r/min
Dimensions:(Width×Depth×Height)	1850×1700×1200mm
Air working pressure	0.5~0.8MPa
Weight when empty	800Kg
Diameter of main shaft	φ32mm
Diameter of milling cutter	Φ250mm
Worktable journey	0~1560mm
Worktable dimension	530×320mm
Max processing high size	0~68mm
Max processing tenoning size	0~45mm
