Aluminum Window CNC Corner Joint Cutting Machine

  • Product Item : LJJ03-CNC-500
  • Brand: OKNA
  • Color : gray/white
  • Country of Origin: China
  • Application:Aluminium Corner Joint Profle Cutting
  • Product description:Aluminum Window CNC Corner Joint Cutting Machine, aluminum corner key profile cutting saw for sale used for automatic cutting aluminum corner joint profiles, aluminum corner joint profile cutting equi
  • Inquiry

Aluminum Window CNC Corner Joint Cutting Machine

Aluminum corner key cutting machine touchscreen CNC Aluminum corner joint cutting

aluminum CNC corner joint cutting for sa;e CNC aluminum window corner joint cutting machine price

PRODUCT DESCRIPTIONS

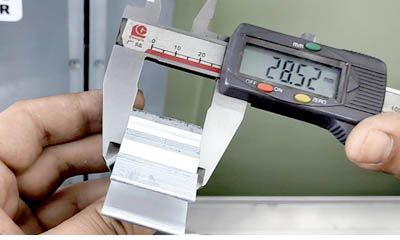

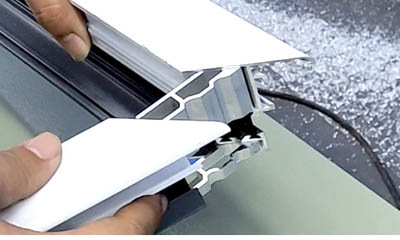

1. Aluminum Window CNC Corner Joint Cutting Machine is used for cutting aluminum corner joint profile and other aluminum industrial profiles.

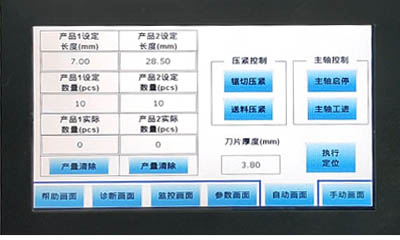

2. Adopts CNC operation system and touchscreen the user can set the processing parameters according to the size of the aluminum window profiles and the quality of the products, the cutting size shifts quickly, locating precision high, the repeat locating precision is ±0.2 mm.

3. Automatic alarm function when without work-pieces or finish cutting.

4. Use the Ball-screw Drive Systems to continuously feed the aluminum profile, and automatically complete the continuous cutting of the aluminum joint profile.

5. Saw blade of the CNC aluminum profile corner connector cutting machine rotates smoothly due to the highly accurate main spindle, steady running with high precision.

6. The speed of the saw blade in feed in linearity adjustable by the air-hydraulic cylinder.

7. Equipped with a phase sequence protection device to protect the machine once shut off or disconnect from the phase.


TECHNICAL SPECIFICATIONS

Power supply
380 V/50 Hz
Total power for motor
3.5 Kw
Motor rotary speed
3200 r/min
Dimensions:(Width×Depth×Height)
2000×1300×1650 mm
Air working pressure
0.5~0.8 MPa
Weight when empty
750 Kg
Blade specification
Φ500 mm×φ30 mm×120 T
Cutter feeding speed
0~3 m/min
Cutting length
3~600 mm
Cutting width
145 mm
Cutting angle
90°

Send email for aluminum window machine price and delivery time ALUMINUM WINDOW MACHINE CATALOG DOWNLOAD FREE
