Aluminum Profile Heat Insulation Rolling Machine

  • Product Item : LFH02
  • Brand: OKNA
  • Color : gray or white
  • Country of Origin: China
  • Product description:Aluminum Profile Heat Insulation Rolling Machine, aluminum profile rolling machine mainly used for rolling of heat-insulating aluminum window profiles. rolling machine for aluminum profiles China manu
  • Inquiry

Aluminum Profile Heat Insulation Rolling Machine

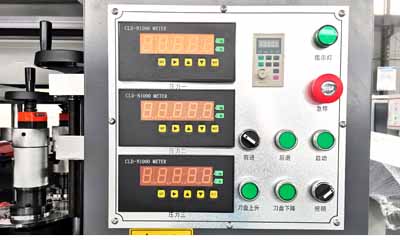

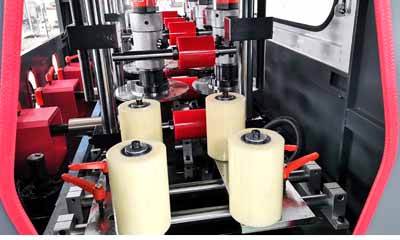

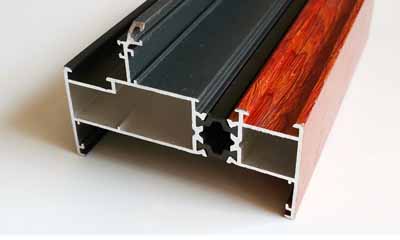

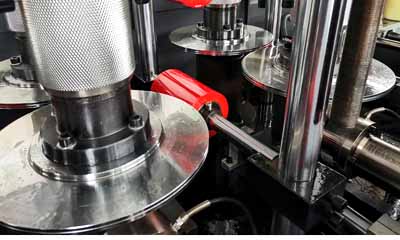

aluminum profile rolling machine operation box aluminum profile rolling machine details aluminum rolling machine wheels aluminum heat insulation profile

Product description

1. The Aluminum Profile Heat Insulation Rolling Machine adopts three sets of pressure sensors with automatic knife adjustment, which can be accurately adjusted through the electronic display and monitor the profile to ensure accurate adjustment of the rolling pressure and ensure the quality of the profile rolling.

2. Rolling wheel adjustment: Each rolling wheel can be adjusted independently (up and down, left and right), and displayed by numbers.

3. The opening of the three groups of rolling plates is adjustable.

4. The third rolling wheel can be straightened during the rolling process to ensure the parallelism and straightness of the aluminium heat insulation profiles.

5. Adopt digital display to accurately display the rolling distance.

6. The lower driving roller is raised or lowered at the same time through the chain transmission mode, and three groups of high-precision digital technology are used for detection to measure the pressure of each group. The adjustment range of digital display can reach 0-100mm. The whole machine is from 0 to 150mm, and the drive is freely adjusted by the motor.

7. The six groups of extrusion knives all have the main driving force to ensure that the profile is balanced in the extrusion process, the feeding speed is fast, and the work efficiency is high.


Technical specifications


Power supply

380V/50Hz or customer specification

Total power

4.0Kw

Dimensions:(Width×Depth×Height)

1060×1100×1500mm

Weight when empty

800Kg

Diameter of rolling wheel

∮230mm

Speed

0~70mm /min(adjustable)

Profile size

Width 280mm*Height 280mm

*All specifications, dimensions, colors, and design characteristics are shown in this Aluminum Profile Heat Insulation Rolling Machine are subject to change without notice.
